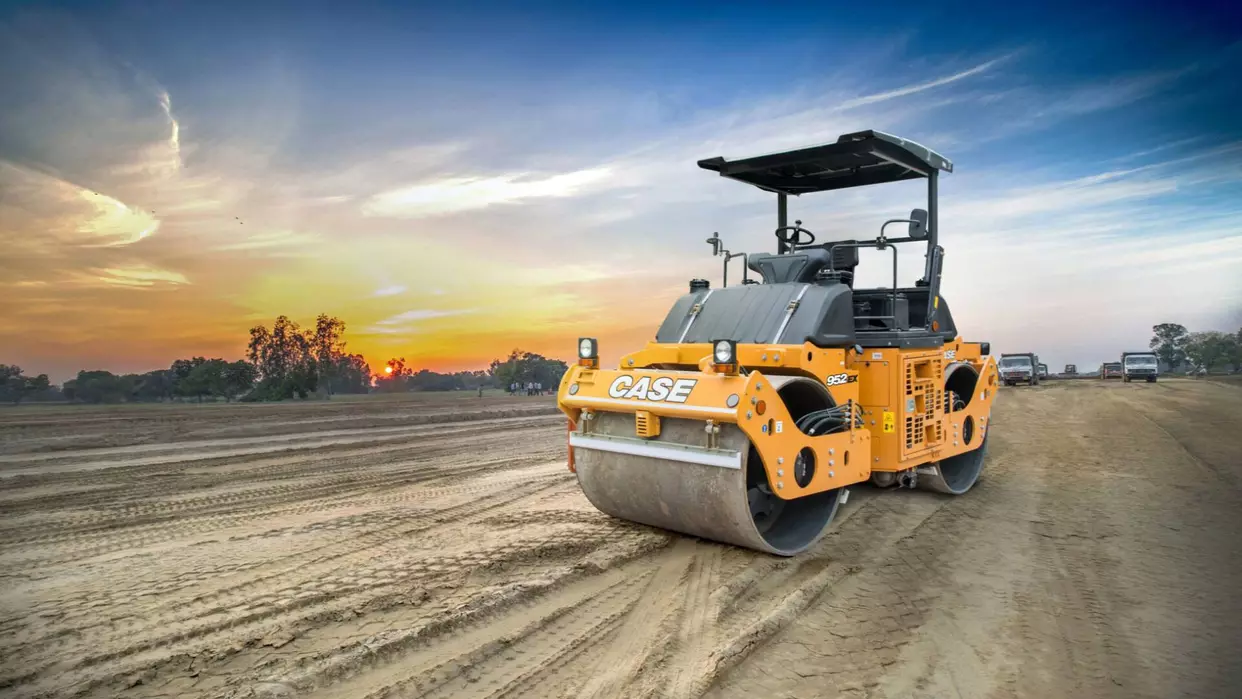

the 952EX Tandem Vibratory Compactor is a fusion of advanced technology and robust design. It offers superior visibility with its new styled operator console and a sloping water tank. The machine is designed for safety and comfort, featuring a sliding and rotating suspended seat, ergonomic controls, and an audio-visual warning system with multiple alerts. It’s an incredibly convenient machine for you to use, with an after-cooler system for peak performance, and features like Auto Idle that improve fuel efficiency by up to 5%. Reliable components from globally recognized brands ensure its durability and performance.
ENGINE |
||
|
Engine Brand
|
Ashok Leyland
|
Ashok Leyland
|
|
Engine Model
|
H4C4E7422
|
H4C4E7422
|
|
Cylinders
|
4
|
4
|
|
Cooling
|
–
|
–
|
|
Displacement (L)
|
3.83
|
3.83
|
|
Air Intake
|
Turbo Charged & After Cooled
|
Turbo Charged & After Cooled
|
|
Fuel Injection
|
Electronic, Common Rail Direct Injection
|
Electronic, Common Rail Direct Injection
|
|
Max Gross Power (kW/ hp) @2200rpm (ISO 14396)
|
54.4 / 73.0
|
54.4 / 73.0
|
|
Max Gross Torque (Nm) @1400 rpm (ISO 14396)
|
340
|
340
|
|
Aftertreatment
|
DOC Only
|
DOC Only
|
POWER TRAIN |
||
|
Gradeability with/without vibration (%)
|
36%/ 20 Deg with 2-3 km/hr
|
36%/ 20 Deg with 2-3 km/hr
|
|
Max Travel Speed (km/hr)
|
11.5
|
11.5
|
|
Max Working Speed (km/hr)
|
5.5
|
5.5
|
|
Propulsion on Front & Rear Drum
|
Hydrostatic
|
Hydrostatic
|
STEERING |
||
|
Steering
|
–
|
–
|
|
Steering Angle (either side) Deg
|
–
|
–
|
|
Turning Radius (M)
|
–
|
–
|
|
Oscillation Angle – (Degree) each side
|
–
|
–
|
ELECTRICAL SYSTEM |
||
|
Starting Method
|
12V, Key Starting Aid
|
12V, Key Starting Aid
|
|
Battery
|
12V, 110Ah
|
12V, 110Ah
|
|
Alternator
|
12V, 125 Amp
|
12V, 125 Amp
|
BRAKES |
||
|
Service Brake
|
Hydrostatic
|
Hydrostatic
|
|
Parking Brake
|
SAHR (Spring Applied Hydraulically Released)
|
SAHR (Spring Applied Hydraulically Released)
|
OPERATIONAL DATA |
||
|
Max Operating Weight* (kg)
|
10414
|
10414
|
|
Operating Weight (kg)
|
9050
|
9050
|
|
Front Axle Load (kg)
|
4410
|
4410
|
|
Rear Axle Load (kg)
|
4640
|
4640
|
|
% Mass on Front (%)
|
48.7%
|
48.7%
|
|
% Mass on Rear (%)
|
51.3%
|
51.3%
|
|
Static Linear Load- Front (kg/cm)
|
26.3
|
26.3
|
|
Static Linear Load- Rear (kg/cm)
|
27.7
|
27.7
|
|
Articulation on Either Side (deg.)
|
25°
|
25°
|
|
Inner Turning Radius (m)
|
5.1
|
5.1
|
|
Vertical Oscillation Angle (deg.)
|
± 10°
|
± 10°
|
VIBRATION SYSTEM |
||
|
Vibration Stage
|
2
|
2
|
|
Frequency High – HF (Hz)
|
50
|
50
|
|
Frequency Low – LF (Hz)
|
33
|
33
|
|
Amplitude (mm)
|
0.2 – 1.0
|
0.2 – 1.0
|
|
Centrifugal Force (Kgf) HF per Drum
|
–
|
–
|
|
Centrifugal Force (Kgf) LF per Drum
|
–
|
–
|
|
Maximum applied Force (Kgf) per Drum
|
–
|
–
|
CAPACITY |
||
|
Water Tank – Front/Rear (L)
|
390/ 390
|
390/ 390
|
|
Fuel Tank (L)
|
140
|
140
|
|
Engine oil (L)
|
11
|
11
|
|
Coolant (L)
|
17.5
|
17.5
|
|
Hydraulic Tank (L)
|
70
|
70
|
COMPONENTS |
||
|
Travel Pump
|
Axial Piston Pump
|
Axial Piston Pump
|
|
Travel Motor
|
Low Torque-High Speed (LTHS), Axial Piston Motor
|
Low Torque-High Speed (LTHS), Axial Piston Motor
|
|
Vibration Pump
|
Axial Piston Pump
|
Axial Piston Pump
|
|
Vibration Motor
|
Axial Piston Motor
|
Axial Piston Motor
|
|
Steering Pump
|
Gear Pump
|
Gear Pump
|
|
Filter Type
|
Cartridge Type
|
Cartridge Type
|
|
Filter Clogging indicator
|
Electrical
|
Electrical
|
|
Filter Quality
|
10 Microns
|
10 Microns
|
DIMENSIONS |
||
|
Wheelbase (m)
|
2.690
|
2.690
|
|
Overall Width (m)
|
1.905
|
1.905
|
|
Rear Overhang – Drum Centre to Frame Edge (m)
|
0.719
|
0.719
|
|
Drum Diameter – Front/ Rear (m)
|
1.220
|
1.220
|
|
Total Machine Height (m)
|
3.100
|
3.100
|
|
Height to Top of Seat/ Steering Wheel (m)
|
2.421
|
2.421
|
|
Ground Clearance (m)
|
0.244
|
0.244
|
|
Total Length (m)
|
4.130
|
4.130
|
|
Side Overhang – Drum Edge to Frame (m)
|
0.112
|
0.112
|
|
Drum Thickness (m)
|
0.017
|
0.017
|
|
Drum Width (m)
|
1.675
|
1.675
|
|
Departure Angle – Front/ Rear (deg.)
|
75°, 75°
|
|
