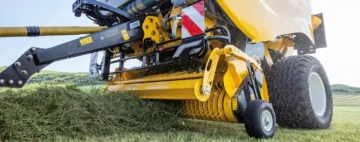

ULTIMATE CROP FLOW
A heavy weight formed steel roller windguard pre-compresses windrows without bunching ensuring a more positive pickup tine engagement. Crop driven it’s fully adjustable to match in-field conditions and it’s continual rotation delivers a smooth even crop flow over the complete pickup for unparalleled capacity.

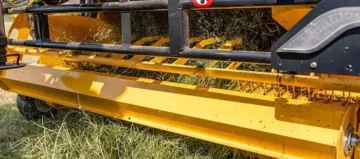

EFFICIENT PICKUP
The Pro-Belt™ baler range features a five tine bar pick-up, which has a mounting angle increased further forward for even smoother crop flow into the baler. The pick-up also features a heavy-duty cut-out clutch for overload protection. When combined with the 2 heavy duty cross augers, which positively directs the crop into the SuperFeed™ or CropCutter™ rotor to maintain a constant crop flow at all times, maximizing capacity
Bale dimensions |
||||
|
Diameter Min. / Max. (cm)
|
90 / 165
|
90 / 165
|
90 / 190
|
90 / 190
|
|
Width (cm)
|
120
|
120
|
120
|
120
|
Tractor requirements |
||||
|
Minimum PTO power [kW/hp(CV)]
|
74/100
|
88/120
|
74/100
|
88/120
|
|
PTO speed (rpm)
|
1000
|
1000
|
1000
|
1000
|
|
Hydraulic remotes required
|
2
|
2
|
2
|
2
|
Main drive |
||||
|
Main drive
|
TwinDrive™ split gearbox
|
TwinDrive™ split gearbox
|
TwinDrive™ split gearbox
|
TwinDrive™ split gearbox
|
|
Protection
|
Cut-out clutch
|
Cut-out clutch
|
Cut-out clutch
|
Cut-out clutch
|
|
Flexible High / Low hitch adjustment
|
Standard
|
Standard
|
Standard
|
Standard
|
MaxiSweep™ pick-up |
||||
|
Standard working width Standard / Optional (m)
|
2.3
|
2.3
|
2.3
|
2.3
|
|
Five tine bar pick-up with rubber tines
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Roller windguard
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Flotation
|
Double adjustable spring
|
Double adjustable spring
|
Double adjustable spring
|
Double adjustable spring
|
|
Hydraulic pick-up lift
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Pick up protection
|
Radial pin clutch
|
Radial pin clutch
|
Radial pin clutch
|
Radial pin clutch
|
|
No tools folding pickup gauge wheels
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Gauge wheels (15/6.00 – 6)
|
Standard
|
Standard
|
Standard
|
Standard
|
Feeding system |
||||
|
Feeding system
|
Rotor width 520mm ‘V’ tine configuration
|
Rotor width 520mm ‘V’ tine configuration
|
Rotor width 520mm ‘V’ tine configuration
|
Rotor width 520mm ‘V’ tine configuration
|
|
ActiveDrop™ floor
|
Standard
|
Standard
|
Standard
|
Standard
|
|
SuperFeed™ system
|
Standard
|
–
|
–
|
–
|
|
CropCutter™ system
|
–
|
Standard
|
–
|
Standard
|
|
Knives
|
–
|
25
|
–
|
25
|
|
Theoretical Cut Length (mm)
|
–
|
83 / 41
|
–
|
83 / 41
|
|
Knife activation, in – out
|
–
|
Hydraulic
|
–
|
Hydraulic
|
|
Knife protection
|
–
|
Individual spring
|
–
|
Individual spring
|
Bale formation |
||||
|
Type
|
Roll-Belt™ technology (Combination of rollers and belts)
|
Roll-Belt™ technology (Combination of rollers and belts)
|
Roll-Belt™ technology (Combination of rollers and belts)
|
Roll-Belt™ technology (Combination of rollers and belts)
|
|
Formation rolls
|
2
|
2
|
2
|
2
|
|
Belts
|
Four 273mm endless
|
Four 273mm endless
|
Four 273mm endless
|
Four 273mm endless
|
|
Twin Belt drive
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Bale shape indicators
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Net wrapping system
|
Duckbill
|
Duckbill
|
Duckbill
|
Duckbill
|
|
Net storage net only
|
2Standard
|
2Standard
|
2Standard
|
2Standard
|
|
Net coverage
|
EdgeWrap™
|
EdgeWrap™
|
EdgeWrap™
|
EdgeWrap™
|
Bale density system |
||||
|
Dual density system
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Density control
|
In-cab control through monitor
|
In-cab control through monitor
|
In-cab control through monitor
|
In-cab control through monitor
|
Electronic control system |
||||
|
ISO 11783 connection ready
|
Standard
|
Standard
|
Standard
|
Standard
|
|
IntelliView™ IV monitor
|
Standard
|
Standard
|
Standard
|
Standard
|
|
IntelliBale™ system
|
Optional
|
Optional
|
Optional
|
Optional
|
|
Moisture measuring sensor
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Electronic safety cut out
|
Standard
|
Standard
|
Standard
|
Standard
|
Brakes |
||||
|
Hydraulic
|
Optional
|
Optional
|
Optional
|
Optional
|
|
Pneumatic
|
Optional
|
Optional
|
Optional
|
Optional
|
Maximum travelling speeds |
||||
|
Maximum travelling speeds
|
50kph
|
50kph
|
50kph
|
50kph
|
Bale ramp |
||||
|
Bale ramp
|
Standard
|
Standard
|
Standard
|
Standard
|
Baler dimensions |
||||
|
Length (m)
|
4,87
|
4,87
|
5,12
|
5,12
|
|
Width on 500/55-20 tyres (m)
|
2,74
|
2,74
|
2,74
|
2,74
|
