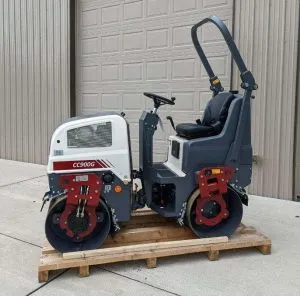

The Dynapac CC900G Gas Honda engine ride-on roller is a member of the small asphalt roller family. With a drum width of 900 mm it’s primarily used for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas. The large drum diameter and drive motors connected in series contributes to excellent accessibility and hill-climbing capacity. Propulsion and vibration naturally come as standard on both drums
specifications
|
. operating mass |
2,900 lbs |
|
Operating mass (incl. ROPS) |
2,800 lbs |
|
Module mass (front/rear) |
1,200 lbs/1,600 lbs |
| Engine | |
|
Manufacturer/Model |
Honda GX630RH QYD |
|
Rated power, SAE J1995 |
Max19 hp @ 3,000 rpm |
|
Fuel tank capacity |
6 gal |
| Compaction | |
|
Centrifugal force |
3,800 lb |
|
Nominal amplitude |
0.016 in |
|
Static linear load (front/rear) |
34 /44 lbs/in |
|
Vibration frequency |
4,200 vpm |
|
Water tank |
50 gal |
| Propulsion | |
|
Speed range |
0-5 mph |
|
Vertical oscillation |
±13° |
|
Theor. gradeability |
35 % |
| Hydraulic system | |
|
Driving |
Axial piston pump with variable displacement. 2 radial piston motors with constant displacement. |
|
Vibration |
Gear pump/motors with constant displacement. |
|
Steering |
Gear pump with constant displacement. |
|
Service brake |
Hydrostatic in forward and reverse lever. |
|
Parking/Emergency brake |
Failsafe brake in both drums. |
