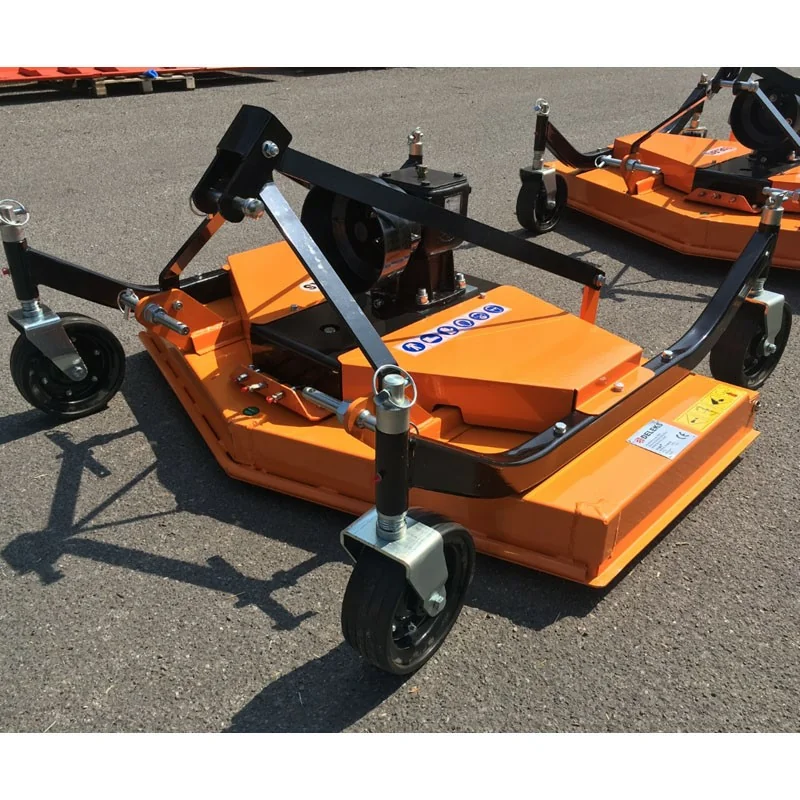

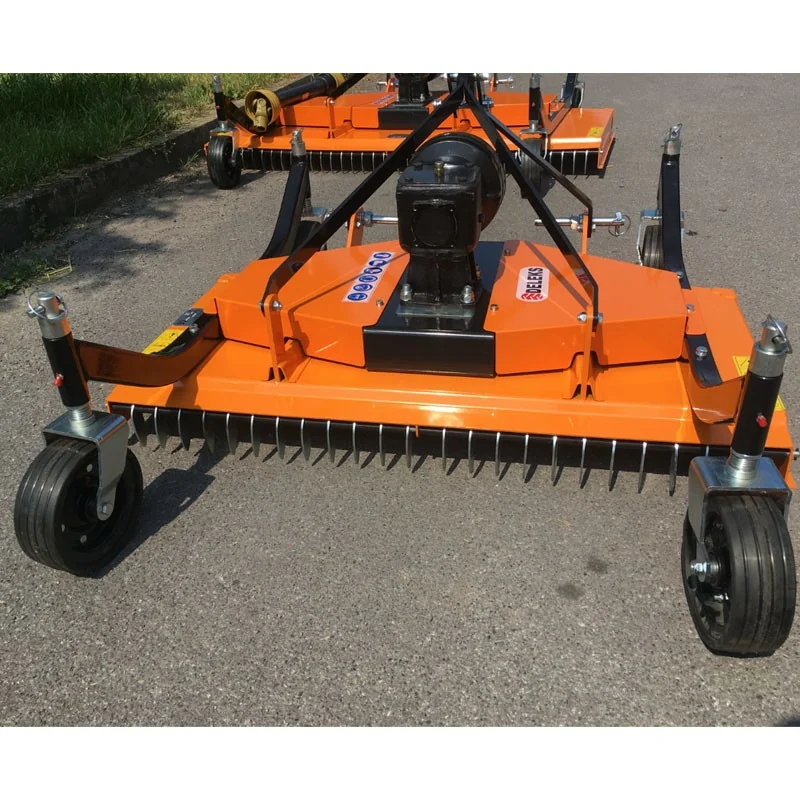

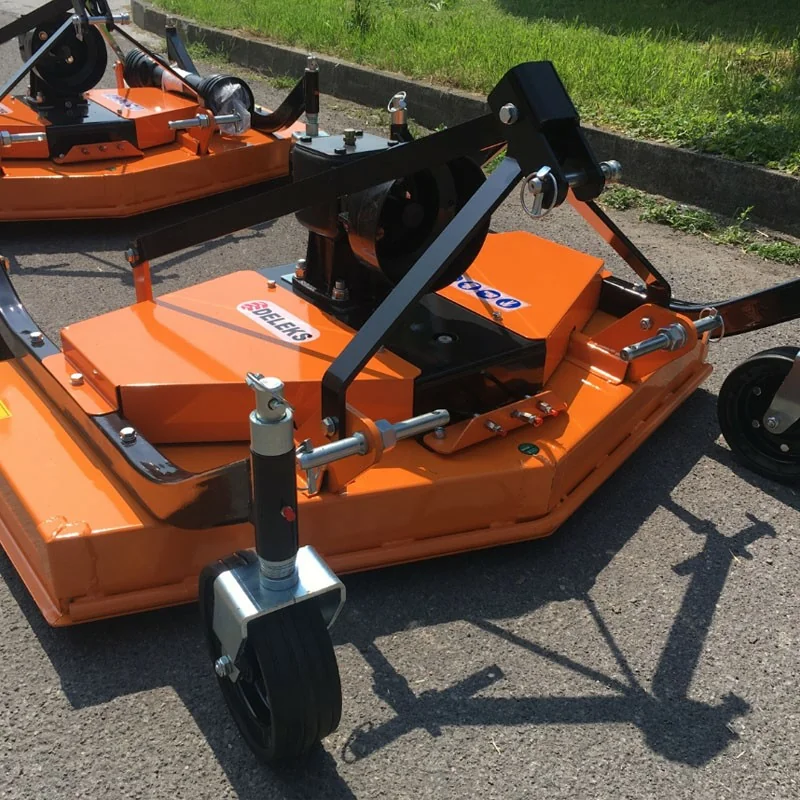

Tractor Mower DELEKS DM 150
The DELEKS DM 150 180 kg Tractor Mower is made for people looking for a professional finish, the DM range ensures a clean and perfect cut, it is the ideal solution for golf courses, camping, parks and sports facilities.
With its light and robust conception, the DM-150 model can be used for tractors from 18 to 45 HP, it has a 540g/min transmission box.

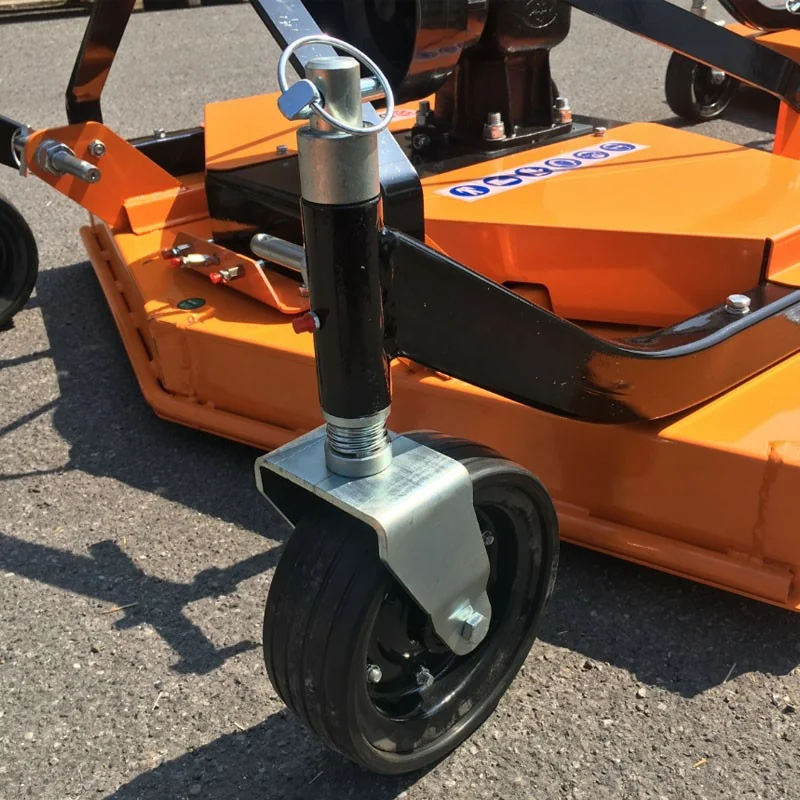

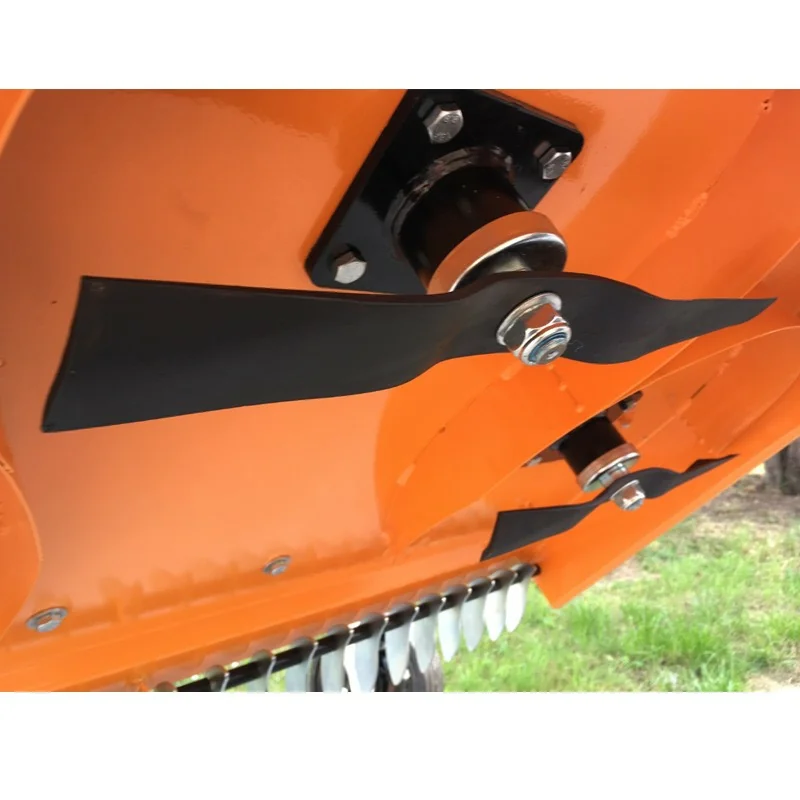

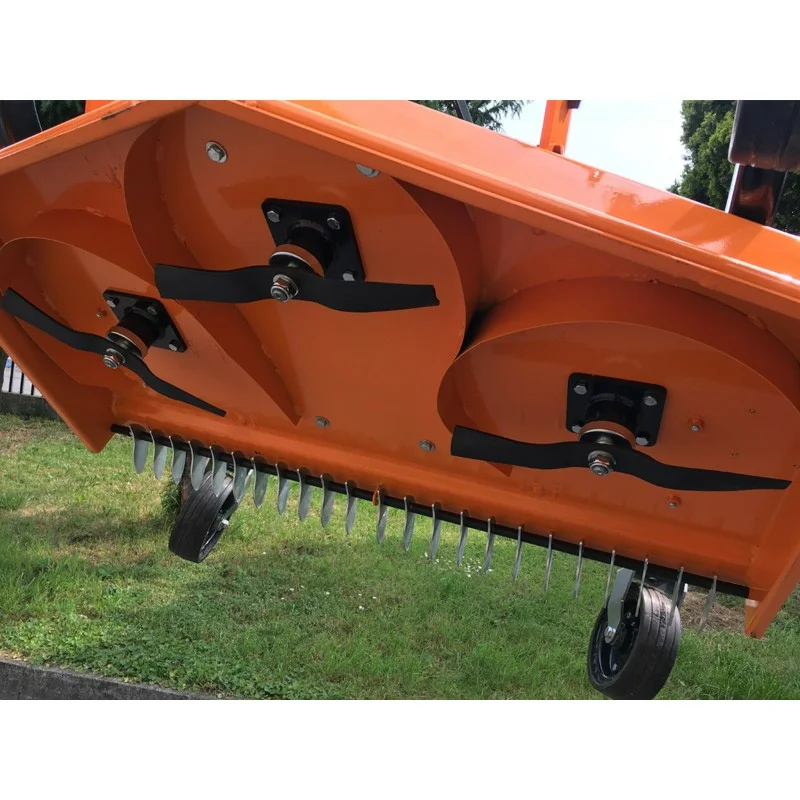

It has ahigh rotation speed on the 3 blades, which ensures a very fine cut of the grass and leaves no residue behind, the 4 swivel wheels ensure the horizontal position of the machine and an adjustment of the cutting height, its light and robust conception allows its use with micro-tractors.
It has 2 heavy-duty belts, with external tension adjustment and a freewheel integrated in the cardan transmission.
Having the right cutting and shredding equipment is crucial for maintaining your land. Whether you’re clearing brush, lawn mowing fields, or shredding crop residue, deleks has got you covered. They have a wide range of cutters and shredders perfect for farmers, ranchers, and landowners with different needs.
Picking a suitable cutter or shredder for your lawn and Agricultural equipment greatly affects your productivity and efficiency. Making an informed decision is vital since there’s a lot on the line. In this guide, we’ll cover all the types of deleks cutters and shredders, what they offer, and how to keep them in good condition. Whether you’re a small farmer or a prominent landowner, this guide will help you pick the perfect equipment and get the most out of it.
Working width | 1500.0 mm |
Total width | 1580.0 mm |
Cutting height min/max | 5.0 – 50.0 mm |
Weight | 180.0 kg |
Total height | 750.0 mm |
Tractor power | 18-45 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 375.0-715.0 mm |
Total length | 1250.0 mm |
Space between ground and transmission box | 450.0 mm |
Plate thickness | 4.0 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl (Garantie 3 ans) |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Schedule |
Transmission: gearbox oil | Yes / SAE 120 – ISO 72925 |
Transmission: number of cores | 2 |
Transmission: dimensions of cores | 17×1753 |
Number of blades | 3 |
Blade rotation speed | 2600 r/min |
Blades: length and width | 500.0/50.0 mm |
Blades: hole diameter | 20.0 mm |
Number of side wheels | 4 |
Lateral wheels: dimensions | 200.0/77.0 mm |
Cardan shaft | CE 2×1000 mm + Pin |
Transmission: ø Pulleys | 245.0/14.0 mm |
Blades: Weight | 1120.0 g |
Packing dimension |
