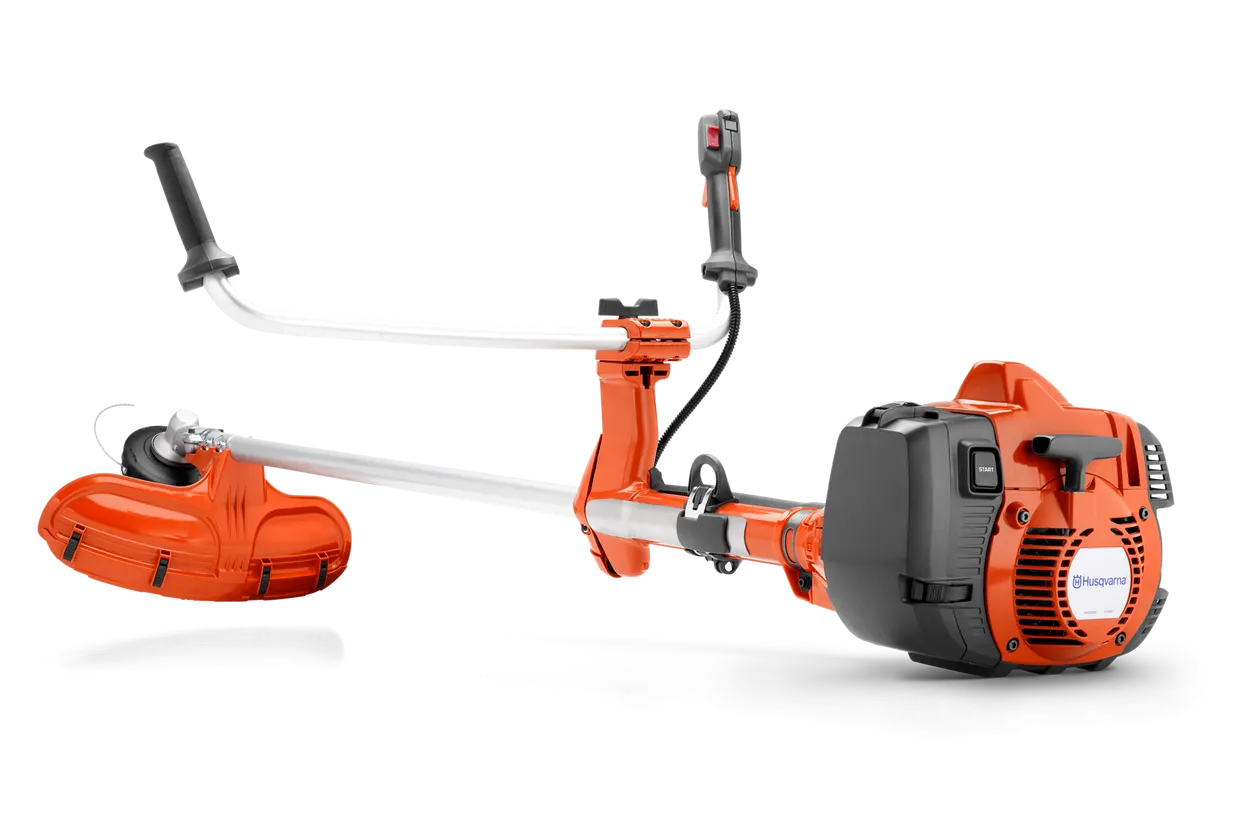

143R-II
Husqvarna 143R-II is a rugged brush cutter designed for tough use. The handle bar has an assymetrical design which leads to better working position. Delivered with double harness.

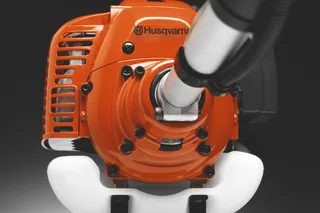

Grass bevel gear
Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.
Specifications
| Engine |
T45X+Multi 275-4, All ex EU, US50, CAN, AUS, NZ
Art no: 967 33 29‑02
|
| Cylinder displacement | 41,5 cm³ |
|---|---|
|
Output shaft power1
|
1,5 kW |
| Fuel tank volume | 0,94 l |
| Fuel consumption | 653 g/kWh |
| Maximum power speed | 7 500 rpm |
| Idling speed | 2 500 rpm |
| Electrode gap | 0,6 mm |
| Clutch engagement speed (±120) | 3 300 rpm |
| Torque, max. | 2,3 Nm |
| Torque, max. at rpm | 5 500 rpm |
| Spark Plug | NGK BPMR7A |
| Equipment | |
| Grass blade | Multi 275-4 |
| Harness | Standard double harness |
| Saw blade | Not included |
| Trimmer head | T45X M12 |
| Capacity | |
| Cutting width | 45 cm |
| Transmission | |
| Gear ratio | 1,4 |
| Drive gear angle | 30 ° |
| Dimensions | |
| Tube diameter | 28 mm |
| Weight (excl. cutting equipment) | 7,6 kg |
| Tube length | 1 483 mm |
| Sound and noise | |
| Sound pressure level at operators ear | 99 dB(A) |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 5,1 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 6 m/s² |
