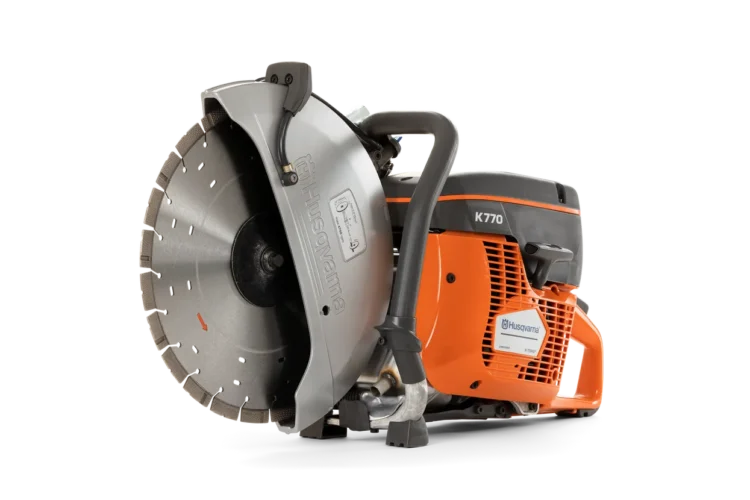

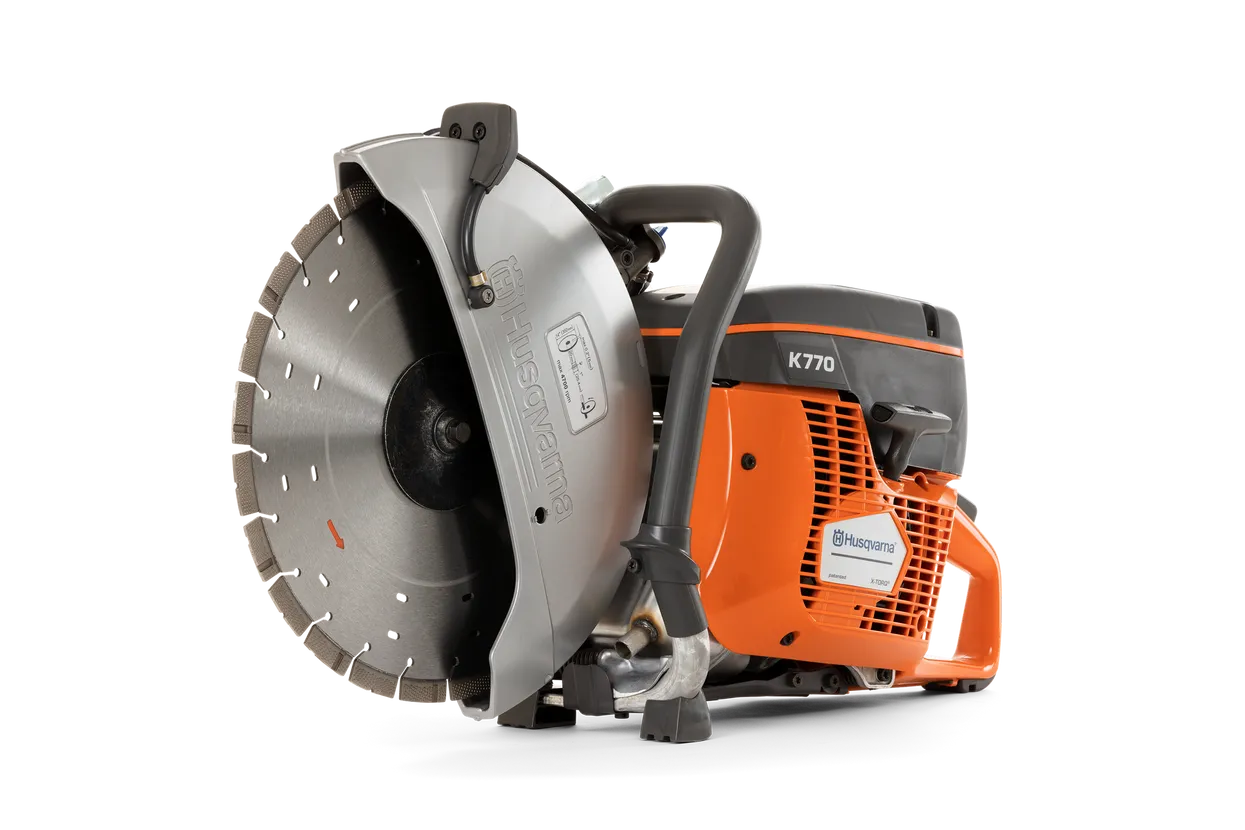

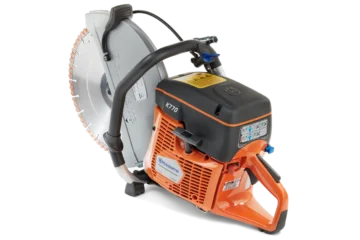

The Husqvarna K 770 is a powerful all-round power cutter with features that make it one of the best power cutters on the market. Equipped with semi-automatic SmartTension™ system allows for optimal power transmission, minimum wear and maximum belt life. The light weight, outstanding power-to-weight ratio, the reliable start and exceptionally low vibrations mean less strain and maximised productivity. Suitable for road work and easy to cut in a straight or curved track or close to sidewalk when used with KV7
trolley.
Specifications
| Engine |
POWER CUTTER K 770 14″ | 1″ / 20mm
Art no: 967 68 21‑01
|
POWER CUTTER K 770 12″ | 20mm / 1″
Art no: 967 80 85‑01
|
|
Output power1
|
3,7 kW | 3,7 kW |
|---|---|---|
| Cylinder displacement | 73,5 cm³ | 73,5 cm³ |
| Electrode gap | 0,5 mm | 0,5 mm |
| Cylinders | 1 | 1 |
| Number of strokes | 2-stroke engine | 2-stroke engine |
| Cutting deck | ||
| Cutting depth, max | 125 mm | 100 mm |
| Emission | ||
|
Exhaust emissions (CO₂ EU V)2
|
711 g/kWh | 711 g/kWh |
| Cutting System | ||
| Blade diameter, max | 350 mm | 300 mm |
| Arbor diameter | 25.4/20 mm | 25.4/20 mm |
| Blade thickness, max | 5 mm | 5 mm |
| Peripheral speed, max | 90 m/s | 80 m/s |
| Dimensions | ||
| Product size length | 605 mm | 605 mm |
| Product size width | 225 mm | 225 mm |
| Product size height | 415 mm | 391 mm |
| Weight (complete product w/o side packed articles) | 10,1 kg | 10 kg |
| Sound and noise | ||
| Sound power level, guaranteed (LWA) | 115 dB(A) | 115 dB(A) |
| Sound pressure level at operators ear | 101 dB(A) | 101 dB(A) |
| Vibration | ||
| Vibrations left/front handle | 2 m/s² | 2,1 m/s² |
| Vibrations right/rear handle | 2,3 m/s² | 2,3 m/s² |
Disclaimer:
- 1Output power: Net power rating as per ISO 7293, at specified RPM
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
