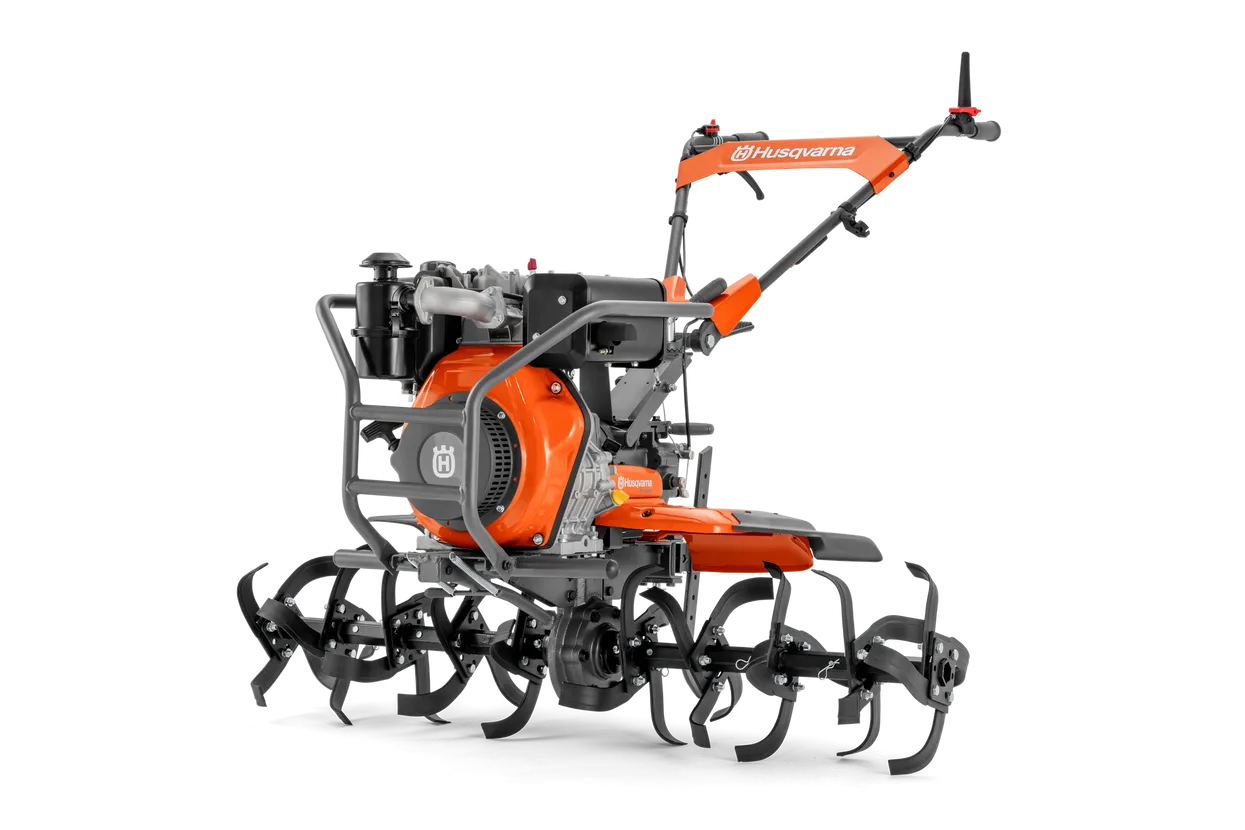

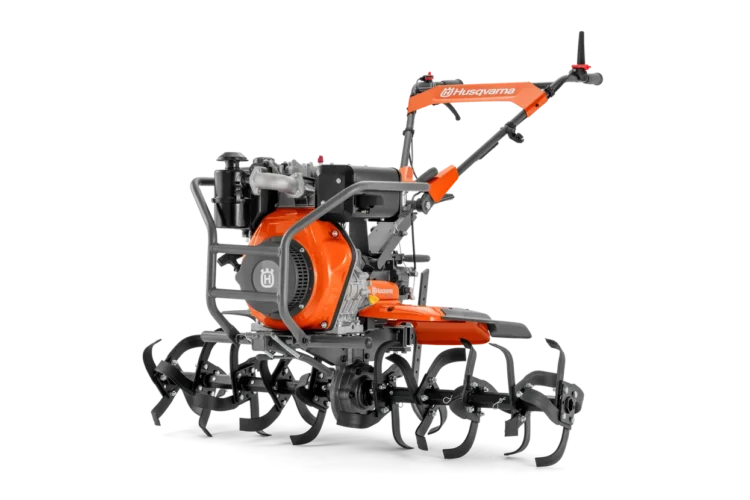

TF 545DE
A tough, powerful tiller that gives you reliability, efficiency and long-lasting Husqvarna durability. Easy-starting diesel engine with electric start and oil bath air filter ensures long service life, even when used in dry, dusty environments – while the fully sealed transmission (with direct clutch, two forward speeds and one reverse) means it’s also perfectly suited to the wet. A wide range of useful accessories connected via the AUX PTO make it a truly versatile machine.
Specifications
| Engine |
TF545DE DIESEL TILLER
Art no: 967 96 77‑01
|
| Engine name | Husqvarna Engine |
|---|---|
|
Net power at preset rpm Energy1
|
6,6 kW |
| Net power at preset rpm | 3 600 rpm |
| Air filter type | Oil bath |
| Fuel tank volume | 4,6 l |
| Power/fuel type | Diesel |
| Cylinder displacement | 418 cm³ |
| Equipment | |
| Rubber wheels | Included |
| Foldable handlebar | Yes |
| Horizontally adjustable handlebar | Yes |
| Vertically adjustable handlebar | Yes |
| Capacity | |
| Working width | 135 cm |
| Working depth | 30 cm |
| Tine diameter | 360 mm |
| Number of tines | 10 |
| Rotational speed (min/max) min | 62 rpm |
| Rotational speed (min/max) max | 145 rpm |
| Cultivator type | Front-tine |
| Transmission | |
| Transmission type | Direct Clutch |
| Transmission steps reverse | 2 |
| Transmission steps forward | 4 |
| Dimensions | |
| Weight (complete product w/o side packed articles) | 167 kg |
