AT THE HEART OF BRAUD DNA

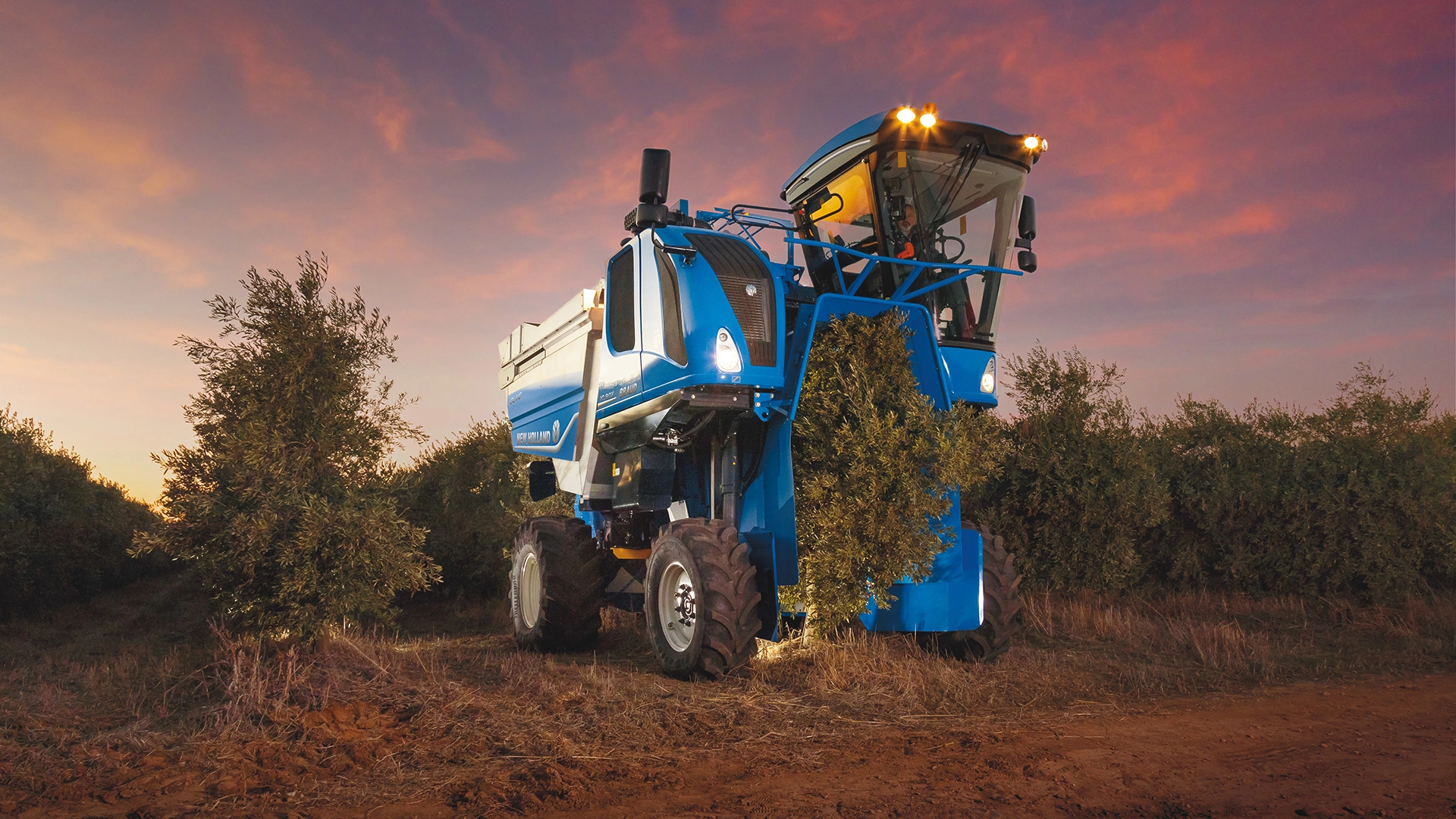

Braud 10.90X Olive has been developed exclusively for Picking Super High Density Olive Orchard (SHD). Super High Density Orchard are also designed for mechanising 100% of its picking by the Braud 10.90X Olive. The SDC system (Shaking Dynamic Control) with flexible rear rods, and the Noria collection system are at the heart of Braud DNA, always improving, but still the benchmark in terms of Super High Density olive shaking efficiency, respect for the olive wood, fruit integrity and minimising losses. Braud 10.90X Olive will be your long term best insurance to pick efficiently Super High Density Olive Orchard, in a durable w
OLIVE EQUIPMENT

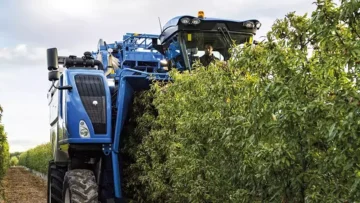

The front tunnel enables progressive entry of the olive trees into the machine; it simultaneously helps to prepare the tree for harvesting and protects the super intensive olive orchard canopy. The top part of the tree being flexible, it is prepared and gently bended to be better shaken: the top 8 SDC shakers are mounted slightly closer to the centre, for a better efficiency on the top lighter part of the tree. The result is: benchmark picking efficiency from the bottom to the top of the Olive tree.

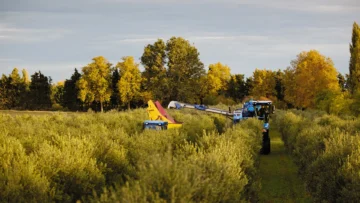

NON STOP HARVESTING WITH SIDE CONVEYOR
A Right hand side conveyor version for the Olive harvesting head is also available: providing a Left side 2000 Liter buffer hopper, this configuration will clearly maximize operation with a non Stop Olive Harvesting.
Technical specifications
|
Olive 2 Hoppers
|
Olive Side Conveyor
|
Harvesting Head Olive 2 Hoppers
|
|
|---|---|---|---|
Orchard type |
|||
|
Orchard type
|
Super Intensive olive orchard
|
Super Intensive olive orchard
|
Super Intensive olive orchard
|
Clearance Max |
|||
|
Clearance Max (machine fully lifted) (m)
|
3.00
|
3.00
|
3.00
|
|
Multifunctional grape harvester with Quick uncoupling
|
Standard
|
Standard
|
Standard
|
Engine |
|||
|
Type
|
FPT NEF
|
FPT NEF
|
Not available
|
|
Compliant with engine emissions regulations
|
Stage V
|
Stage V
|
Not available
|
|
Power ECE R120 – ISO 14396 [kW/hp(CV)]
|
134/182
|
134/182
|
Not available
|
|
Cylinders / Aspiration
|
6 Turbo with Intercooler
|
6 Turbo with Intercooler
|
Not available
|
|
ECOBlue™ HI-eSCR 2 system (Selective Catalytic Reduction)
|
Standard
|
Standard
|
Not available
|
|
Reversible cooling Fan
|
Optional
|
Optional
|
Not available
|
Tractor base unit |
|||
|
Diesel capacity / AdBlue capacity (L)
|
270 / 41
|
270 / 41
|
Not available
|
|
Heavy duty high-efficiency transmission, with 30kph Road Speed*
|
Standard
|
Standard
|
Not available
|
|
Front axle hydraulic suspension
|
Standard
|
Standard
|
Not available
|
|
Maximum steering angle (degrees)
|
90
|
90
|
Not available
|
|
Front wheel torque limiter
|
Standard
|
Standard
|
Not available
|
|
Maximum slope (%)
|
35
|
35
|
Not available
|
|
Lateral slope (%)
|
25
|
25
|
Not available
|
|
IMS 2.0 – Intelligent management system 2nd Generation
|
Standard
|
Standard
|
Not available
|
|
CDHA – Automatic height and lateral slope correction
|
Standard
|
Standard
|
Not available
|
|
Cruise control with radar
|
Standard
|
Standard
|
Not available
|
|
Electric park brake with brake pedal and seat button
|
Standard
|
Standard
|
Not available
|
Harvesting head |
|||
|
Number of SDC shakers (standard dotation)
|
42
|
42
|
42
|
|
Flexible rear shaker fixation
|
Standard
|
Standard
|
Standard
|
|
Quick coupling of the picking head
|
Standard
|
Standard
|
Standard
|
|
Hydraulic horizontal shaking rod spacing / quick shaker engagement
|
Standard / Not available
|
Standard / Not available
|
Standard / Not available
|
|
Sealed length of collection baskets (mm)
|
2500
|
2500
|
2500
|
|
Number of collection baskets
|
2 x 71
|
2 x 71
|
2 x 71
|
|
Basket size
|
XXL
|
XXL
|
XXL
|
|
Ground sensor for autolevelling
|
Standard
|
Standard
|
Standard
|
|
Tool free Noria tightening system
|
Standard
|
Standard
|
Standard
|
|
Automatic swing lock system
|
Standard
|
Standard
|
Standard
|
|
High capacity central cleaning conveyors (mm)
|
460
|
460
|
460
|
|
Secondary lateral dispatching conveyors (mm)
|
230
|
230
|
230
|
|
Upper cleaning fan with rear exhaust
|
Standard
|
Standard
|
Standard
|
|
Lower cleaning fans
|
Not available
|
Not available
|
Not available
|
|
Hydraulic heavy duty auger
|
Standard
|
Standard
|
Standard
|
|
2 Stainless steel hoppers / Capacity (L)
|
Standard / 4000
|
Not available
|
Standard / 4000
|
|
1 Stainless steel hopper and right side conveyor / length (m)
|
Not available
|
Standard / 5.2
|
Not available
|
|
Remote control
|
Optional
|
Optional
|
Not available
|
|
Harvesting head centralised greasing
|
Standard
|
Standard
|
Standard
|
Cab |
|||
|
Cab inside Volume (m3)
|
2.23
|
2.23
|
Not available
|
|
Cab glass area (m2)
|
2.27
|
2.27
|
Not available
|
|

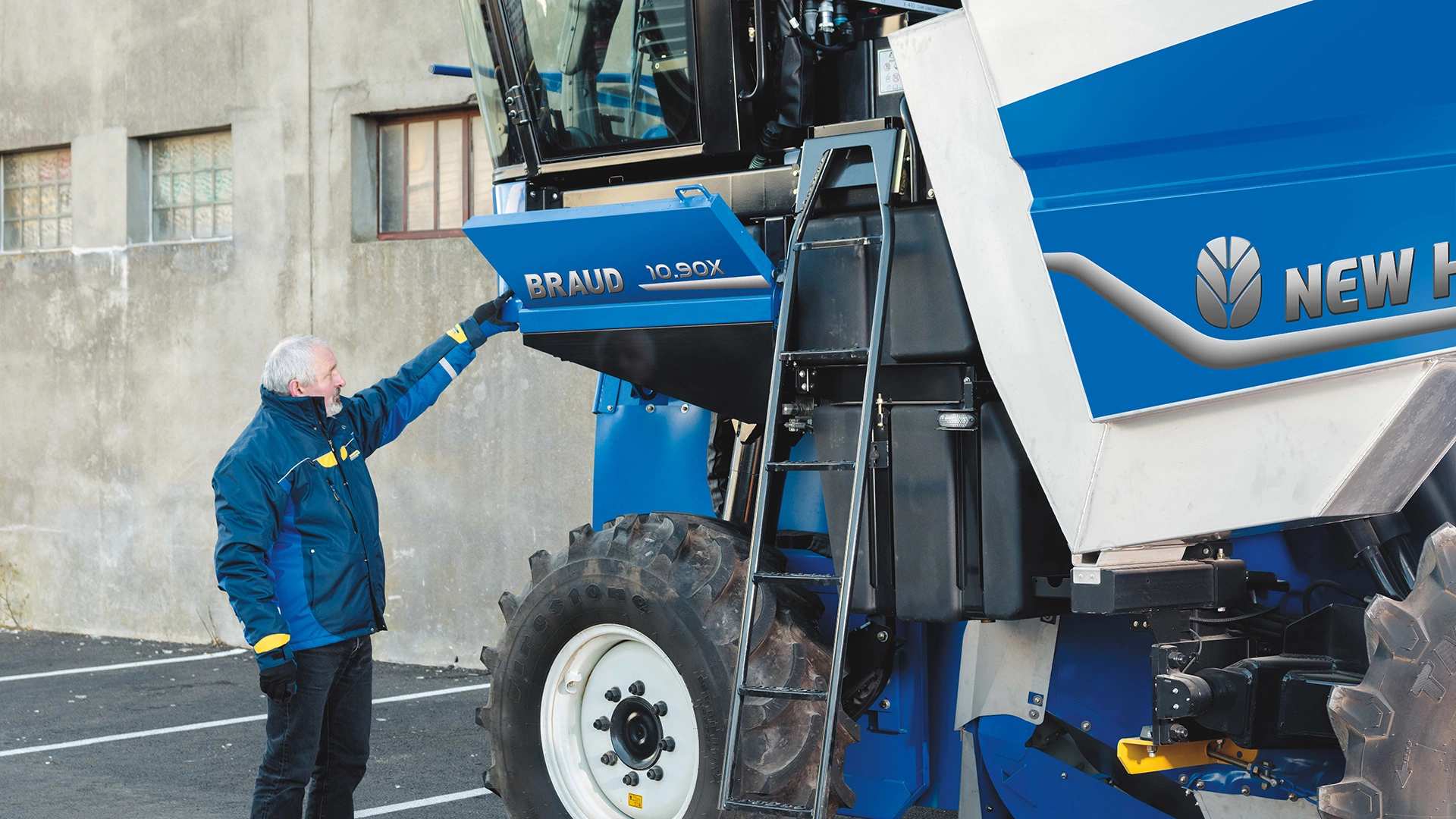

Actuated access ladder and platform with light
|
Standard
|
Standard
|
Not available
|
|
Protective structure
|
ROPS Code 8
|
ROPS Code 8
|
Not available
|
|
Air Conditioning and refrigerated box
|
Standard
|
Standard
|
Not available
|
|
Cab filtration system / Category level (EN 15695)
|
Standard / 2
|
Standard / 2
|
Not available
|
|
Blue Cab™ 4 Pack**
|
Optional
|
Optional
|
Not available
|
|
Bluetooth Radio with separated microphone (hand free phone calls)
|
Standard
|
Standard
|
Not available
|
|
2 Speakers integrated system
|
Standard
|
Standard
|
Not available
|
|
Adjustable armrest & Multifunctional joystick
|
Standard
|
Standard
|
Not available
|
|
IntelliView™ IV touch screen Monitor with adjustable position
|
Standard
|
Standard
|
Not available
|
|
Splitable colour monitor for cameras
|
Standard
|
Standard
|
Not available
|
|
Cameras (colour)
|
2 Standard / +2 Optional
|
2 Standard / +2 Optional
|
1 Standard
|
|
Steering column and adjustable pneumatic suspended seat
|
Standard
|
Standard
|
Not available
|
|
Heated and ventilated bi-colour deluxe Seat
|
Optional
|
Optional
|
Not available
|
|
Lights with dedicated Light Control Panel (LCP)
|
12
|
12
|
Not available
|
|
Mirrors with electrical adjustment
|
Standard
|
Standard
|
Not available
|
|
Right mirrors retractable
|
Standard
|
Standard
|
Not available
|
|
Front and back glass sunshades
|
Standard
|
Standard
|
Not available
|
Premium Viticulture/PLM® |
|||
|
Row Tracking system GPS NH 162 (RTS)
|
Optional
|
Optional
|
Not available
|
|
Grape static weighting system with printer
|
Optional
|
Not available
|
Not available
|
|
New Holland FieldOps™ Telematics professional package
|
Optional
|
Optional
|
Not available
|
* Only for market authorizing homologation
** Blue Cab™ 4 Pack: Featuring Category 4 filtration (EN 15695-1 and -2), Automatic A/C, heated and ventilated Bi-color deluxe seat, LED working lights, removable 12V Cool box
