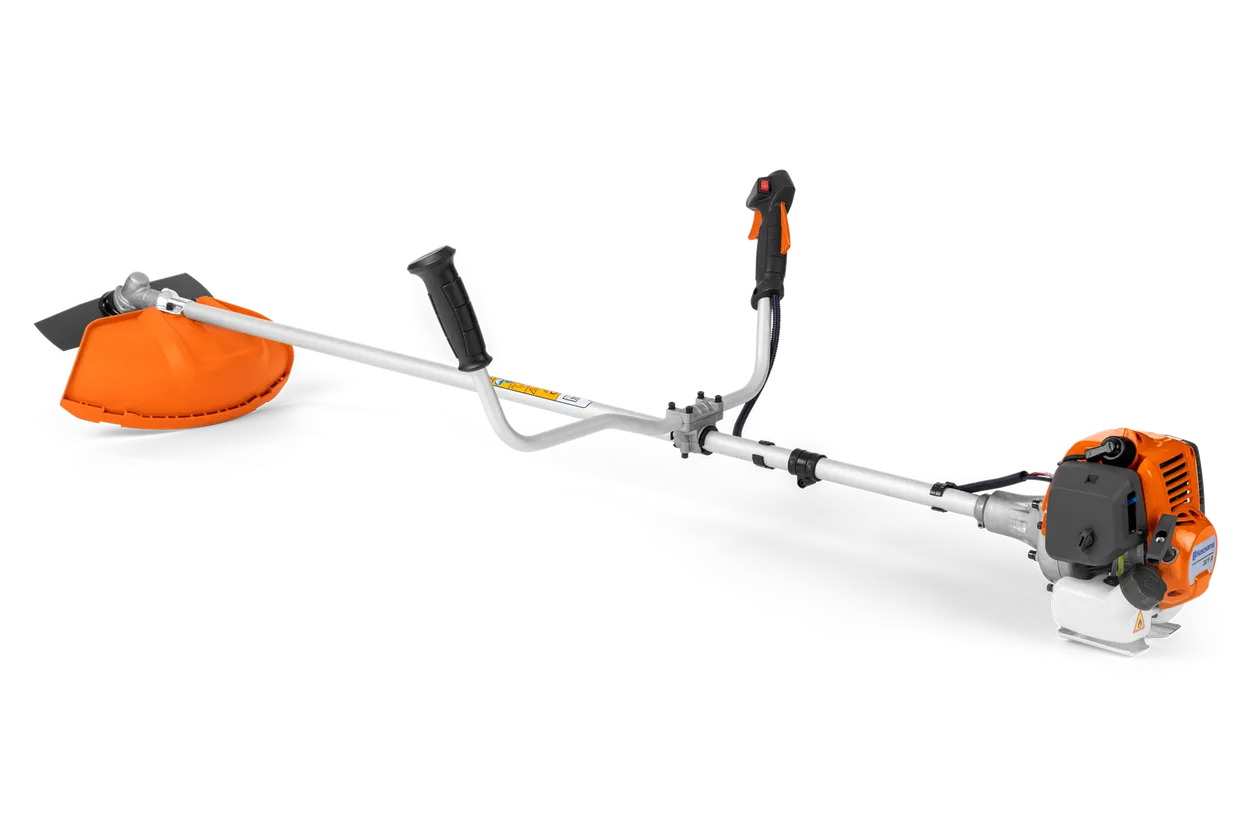

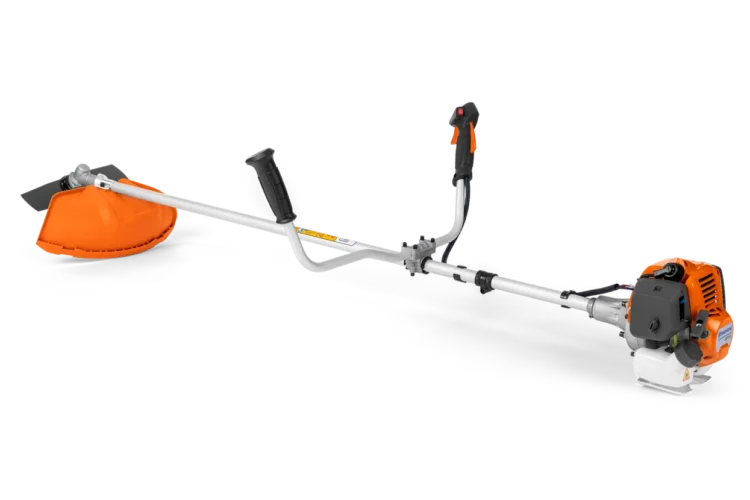

321R Brushcutter
Specially adapted for farm work, this brushcutter offers a robust, durable construction, easy starts and comfortable handling thanks to the die casted bullhorn handle bar bracket with anti-vibration. It is easy to start thanks to Smart Start(R) – designed so the machine starts quickly with minimum effort and resistance in the starter cord is reduced by up to 40%. 321R has a reliable 2 stroke engine and durable die cast reinforced bevel gear that provides a robust brushcutter with longer lifetime.
Specifications
| Engine |
T25+Multi 330-2, LAP exc BR;PY;CN
Art no: 970 65 12‑01
|
| Cylinder displacement | 25,4 cm³ |
|---|---|
|
Output shaft power1
|
0,75 kW |
| Fuel tank volume | 0,6 l |
| Fuel consumption | 604 g/kWh |
| Maximum power speed | 7 000 rpm |
| Idling speed | 3 000 rpm |
| Maximum rpm output shaft | 8 200 rpm |
| Electrode gap | 0,6 mm |
| Clutch engagement speed (±120) | 4 300 rpm |
| Torque, max. | 0,85 Nm |
| Torque, max. at rpm | 6 000 rpm |
| Spark Plug | TORCH L8RTC |
| Equipment | |
| Grass blade | Multi 330-2 |
| Harness | Standard double harness |
| Trimmer head | T25 (L) |
| Handle type | Bike Handle |
| Control | |
| Connectivity | Not applicable |
| Capacity | |
| Cutting width | 43 cm |
| Transmission | |
| Gear ratio | 1,25 |
| Drive gear angle | 120 ° |
| Dimensions | |
| Tube diameter | 260 mm |
| Weight (excl. cutting equipment) | 6,3 kg |
| Tube length | 1 480 mm |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Lubricant type (bevel gear) | Mineral grease |
| Sound and noise | |
| Sound pressure level at operators ear | 97,9 dB(A) |
| Sound power level, guaranteed (LWA) | 110 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 4,5 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 4,6 m/s² |
