OVERVIEW

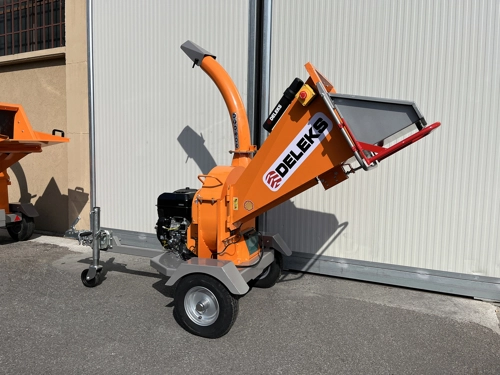

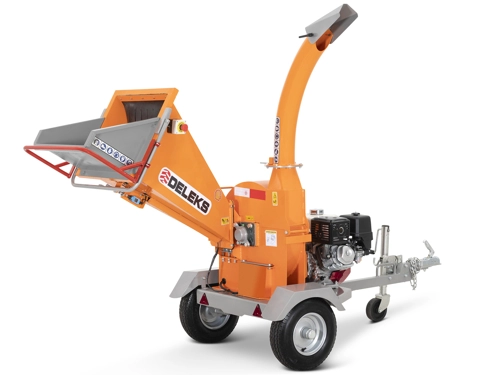

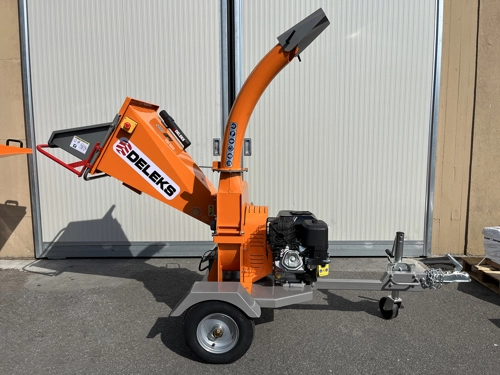

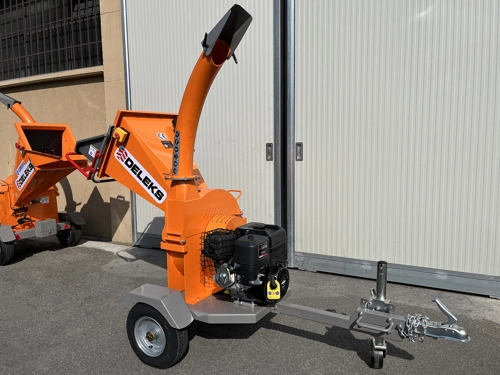

Disc-operated DK-900 wood chipper has been designed to shred a wide variety of dry and green wood up to a maximum diameter of 12cm. It produces a wood chips measuring approximately 1/2cm, which ensures optimal combustion when used in wood chip boilers/furnaces.

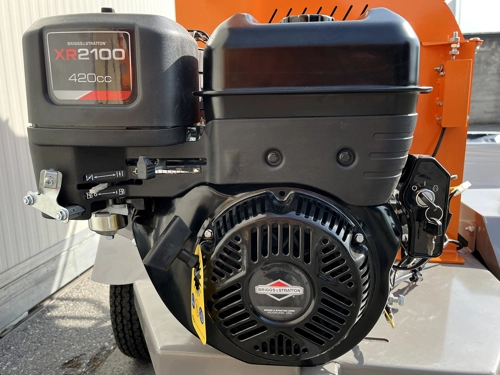

Gasoline engine Briggs&Stratton XR2100 420cc (3-Year warranty – Spare parts always available).
Ideal for professional/contractor usage.
Chipper produces enough material to make pulp or pellets for industrial use.
This machine is not for road use, and not suitable for shredding corn, straw, alfalfa, etc ..
BENEFITS AND FEATURES
Electric Starter.
Heavy steel disc with 2 reversible high-strength counter-blades in Bohler steel (produced in Italy).
Redesigned outlet made with a thicker tubular. Its height of 1,8 m allows the material to be discharged directly into compost containers or on the truck body. In a few seconds with the two butterfly levers it is possible to adjust the direction or remove it.
The Anti-shock clutch avoids direct motion between the motor and the disc, thus facilitates the cold start and in case of jamming or introduction of foreign objects, prevents the crankshaft from damage.
Openable hood for maintenance and change of blades.
Gasoline engine, air-cooled 4-stroke.
Starter rope.
Excellent maneuverability thanks to the wheels 40cm in diameter.
Solid structure (250kg) and stable with a low center of gravity.
Conforms to the CE directive.
STANDARD EQUIPMENT
Set of 2 replacement transmission belts
CE protection caps
CE protective glasses
Use and maintenance manual for the machine
Use and maintenance manual for the Briggs&Stratton XR2100 engine
Orange Spray Paint
Complete set of replacement stickers
Set wrenches for maintenance
Specification:
| Characteristic | Units metric |
|---|---|
| Overall width | 1010.0 mm |
| Weight | 250.0 kg |
| Overall height | 1831.0 mm |
| Overall length | 2842.0 mm |
| Blades: Weight | 520.0 g |

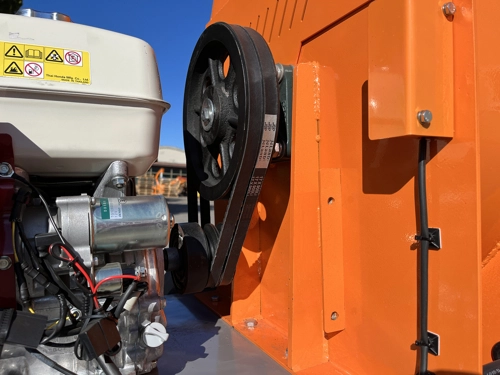

| Transmission | V Belts |
| Working Efficiency | 6-7 m3/h |
| Cutting System | Disc with 2 blades + 1 fixed blade |
| Chipped material size range | 5.0 – 15.0 mm |
| Transmission V-Belts quantity | 2 |
| Transmission V-Belts sizes | 17×900 |
| Safety System | Emergency button |
| Blades: Sizes | 170.0*50.0*10 mm |
| Maximum cutting diameter | 100.0 – 120.0 mm |
| Engine | 13.5.0Hp Briggs&Stratton XR2100 420cc |
| Starter | E-start and Pull cord |
| Wheels: sizes | ø 400.0 mm |
| Cutting inlet sizes | 160.0*175.0 mm |
| Towing bar | √ |
| Outlet hight | 1800.0 mm |
| Fuel consumption | 1 l/h |
| Packing sizes | 1050.0*770.0*1250.0 mm |
