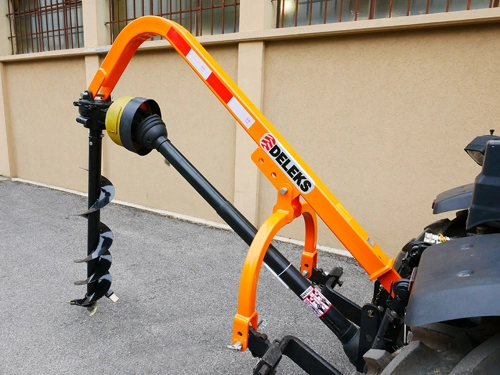

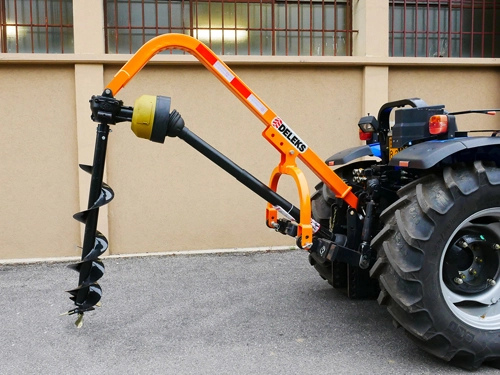

Post Hole Digger for tractor CNH-Universal 3-point hitch Cat. 1-2 – Gearbox PTO 540 r.p.m. increasedAgricultural post hole digger with 3-point linkage, works applied to the tractors lifting arms.
To make vertical holes in the ground. Ideal for agriculture, gardening, for planting vineyards, trees, poles, fences, for digging holes on the beach at the bathing establishments.
Supplied as standard with:
Universal 3-point hitch Cat. 1-2

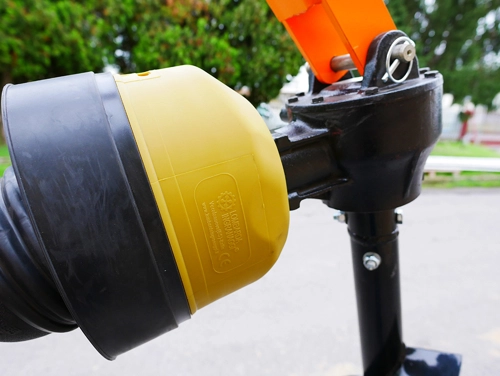

Gearbox PTO 540 r.p.m. increased
PTO 1300mm (CE approved)
Accordingly CE accident prevention protections
Optional:
Auger: 100.0 mm
Auger: 200.0 mm
Auger: 300.0 mm
ADVANTAGES
Extremely easy to use
Interchangeable tip and knives
Inclination adjustment of the arm angle
Takes advantage of the tractor levers does not require a hydraulic system
Specification:
| Characteristic | Units metric |
|---|---|
| Weight | 82.0 kg |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 450.0 – 730.0 mm |
| Arm tube thickness | 5.0 mm + reinforcements |
| Auger speed rotation | 180 r/min |
| Thickness of the arm | 5.0 mm + reinforcements |
| Pto shaft | CE 5×1300 mm |
| Reach (D) | 1770.0 mm |
| HP min | 35 Hp |
| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| Oil in the gearbox | Yes / SAE 120 – ISO 72925 |
| Packing sizes | 1700*800*500 mm |
