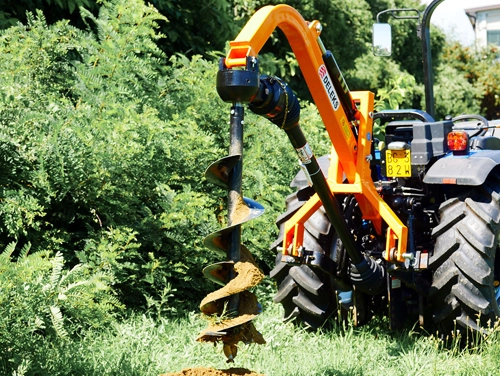

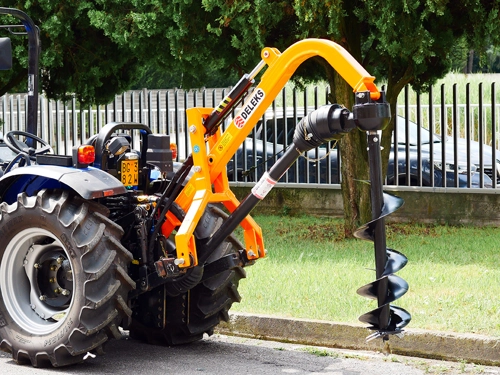

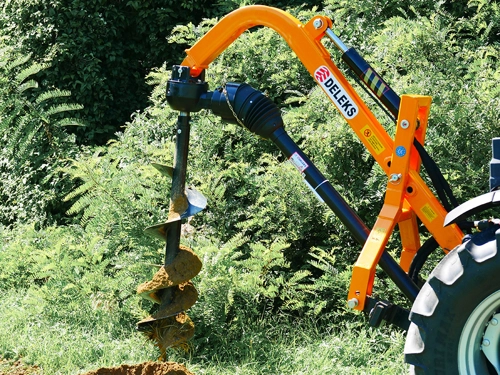

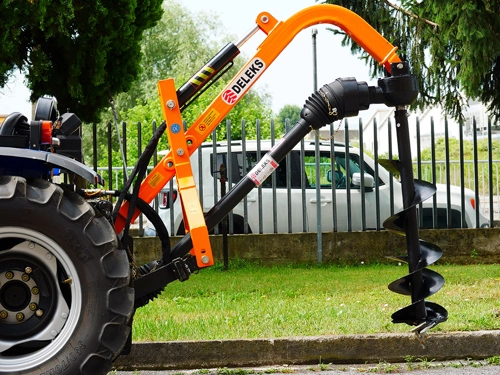

Agricultural post hole digger with 3-point linkage, works applied to the tractors lifting arms.

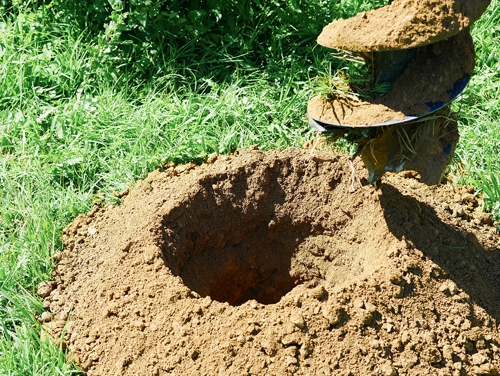

To make vertical holes in the ground. Ideal for agriculture, gardening, for planting vineyards, trees, poles, fences, for digging holes on the beach at the bathing establishments.
Supplied as standard with:
Universal 3-point hitch Cat. 1-2
Gearbox PTO 540 r.p.m. increased
PTO shaft (CE approved)
Hydraulic arm cylinder with pipes
Accordingly CE accident prevention protections
Optional:
Auger: 100.0 mm
Auger: 200.0 mm
Auger: 300.0 mm
ADVANTAGES
Extremely easy to use
Interchangeable tip and knives
Inclination adjustment of the arm angle
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
Specification:
| Characteristic | Units metric |
|---|---|
| Weight | 130.0 kg |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Spacing between the 2 lower points | 630.0 – 740.0 mm |
| Arm tube thickness | 5.0 mm + reinforcements |
| Auger speed rotation | 180 r/min |
| Thickness of the arm | 5.0 mm + reinforcements |
| Pto shaft | CE 5×1300 mm |
| Reach (D) | 1770.0 mm |
| HP min | 40 Hp |
| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| Oil in the gearbox | Yes / SAE 120 – ISO 72925 |
| Digg Depth | 1250.0 mm |
| ø auger | Optional |
| Packing sizes | 1700*800*500 mm |
