OVERVIEW

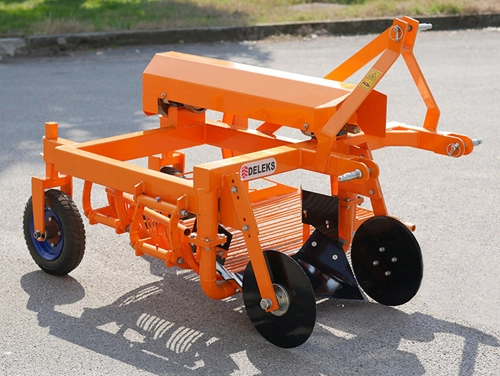

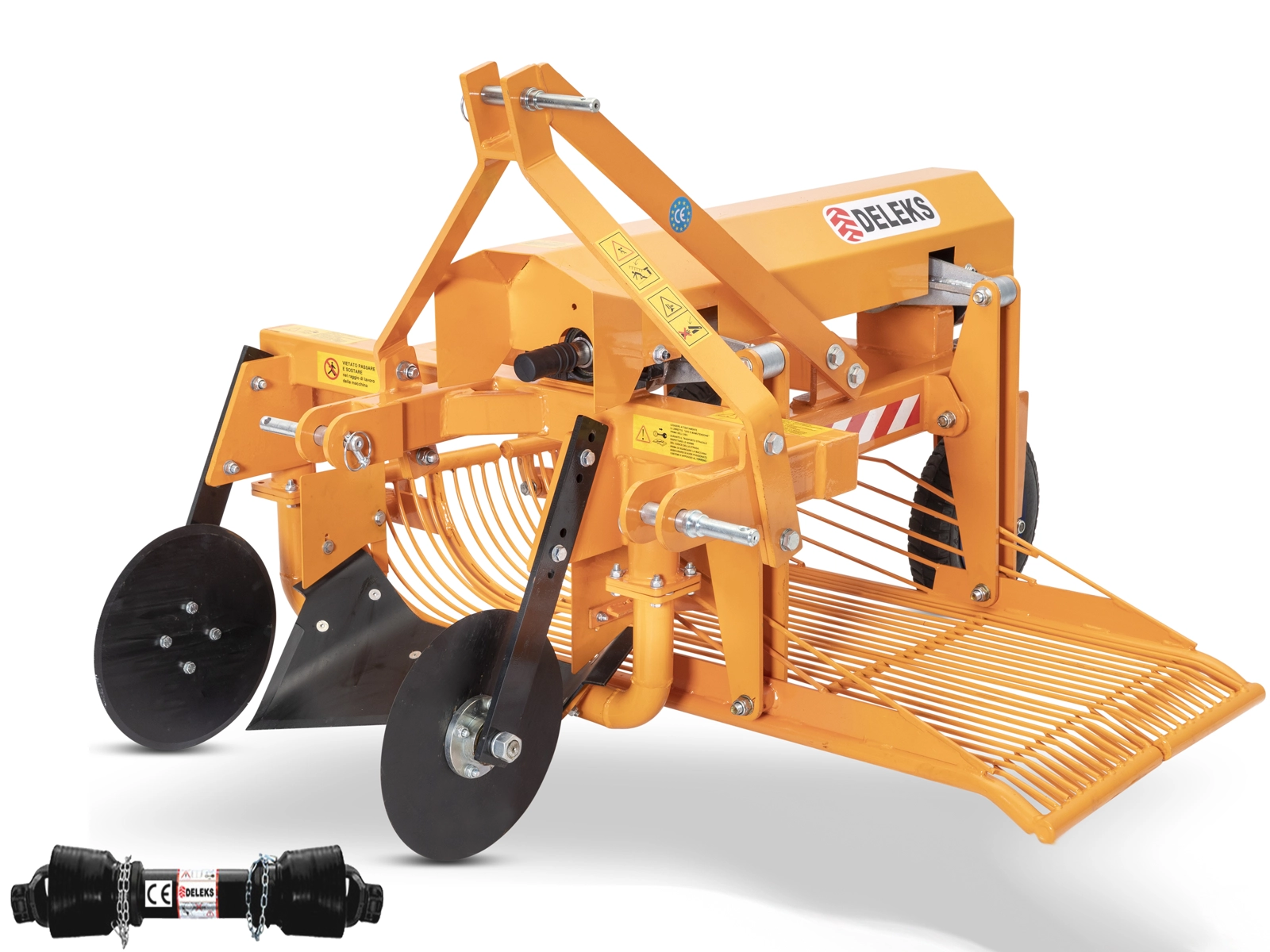

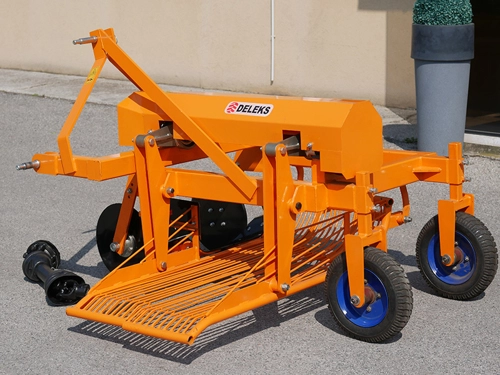

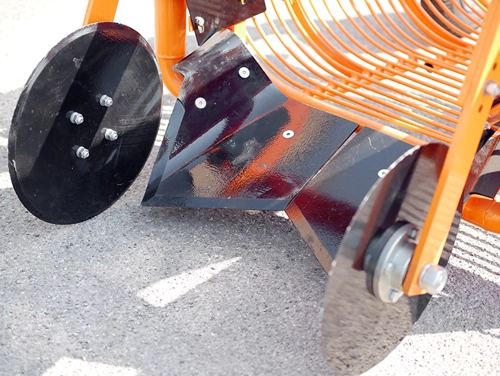

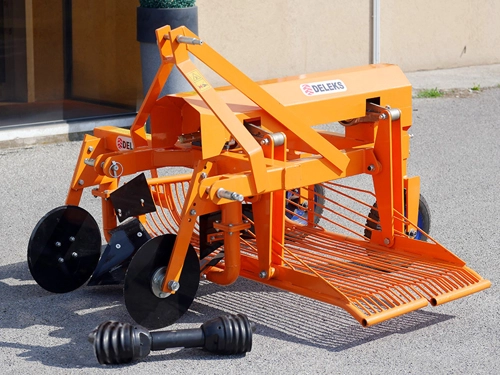

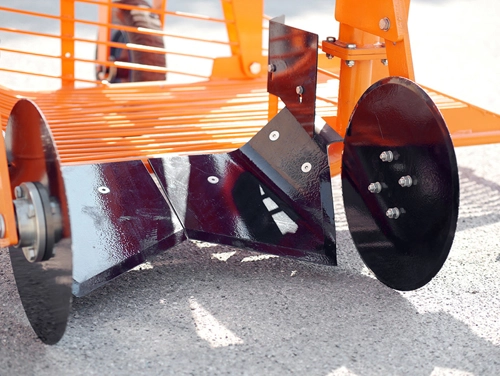

The DPT Potato Digger has been designed to be used on medium size tractors. The machine is made up of a vibrating digging plowshare with adjustable digging depth that conveys the potatoes and the earth onto a vibrating sieve grid that separates the potatoes from the earth, thus depositing them on a single cut row. It fits most common tractor brands: New Holland TK4000, T3030, T3F, John Deere serie 3-4, Landini Mistral, Antonio Carraro Tigrone, Kubota L, Deutz-Fahr, Lamborghini EGO 45-55, McCormick, Same Solaris, etc. Universal 3 point linkage Cat.1. EC Declaration of Conformity.
BENEFITS & FEATURES
Full plots of potatoes can be dug up in one go.
Can be used for a range of different crops.
Can be used on flat plain or on terrain with a range of different gradients.
Rubber silent block reduces vibration during use to give the machine longevity.
Simple effective design.
Pto Shaft included.
Specification:
| Characteristic | Units metric |
|---|---|
| Overall width | 1500.0 mm |
| Weight | 272.0 kg |
| Overall height | 1100.0 mm |
| Tractor Power Range | 35 – 60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Position of the gearbox | 400.0 mm from left side / 700.0 mm from right side |
| 3 point linkage Thickness | 12.0*60.0 mm |
| Spacing between the 2 lower points | 555.0 – 820.0 mm |
| Overall length | 1600.0 mm |
| Distance between the 2 lower points and ground | 580.0 mm |
| Digging depth | Adjustable |
| Diameter of the wheels | 380*9.0 mm |
| Effective Working width | 630.0 mm |
| Distance between pto attachment and base | 680.0 mm |
| Pto shaft | CE 4×800 mm + shear bolt |
| Rotation of gearbox | Right side |
| PTO | 540 r/min |
| Packing sizes | 1150.0*1600.0*100.0 mm |
