CUT A WIDE SWATHU
pdraft blades provide clean, even cutting. A 180 in. (457 cm) flex-wing cutting width makes short work of large areas and tough conditions.
HEAVY-DUTY CONSTRUCTION
Built tough for the long haul, these cutters feature heavy-duty, 7-gauge decks for superior reliability, replaceable skid shoes and a five-year gear box warranty, limited to defects in workmanship/material, for peace of mind.
EASY DOES IT
These standard features make your workday easier:
• Protective deck rings and a rear safety chain keep equipment secure
• Wing lift hydraulics allow easy transport
• Jackstand and hitch swivel clevis make hookup easy

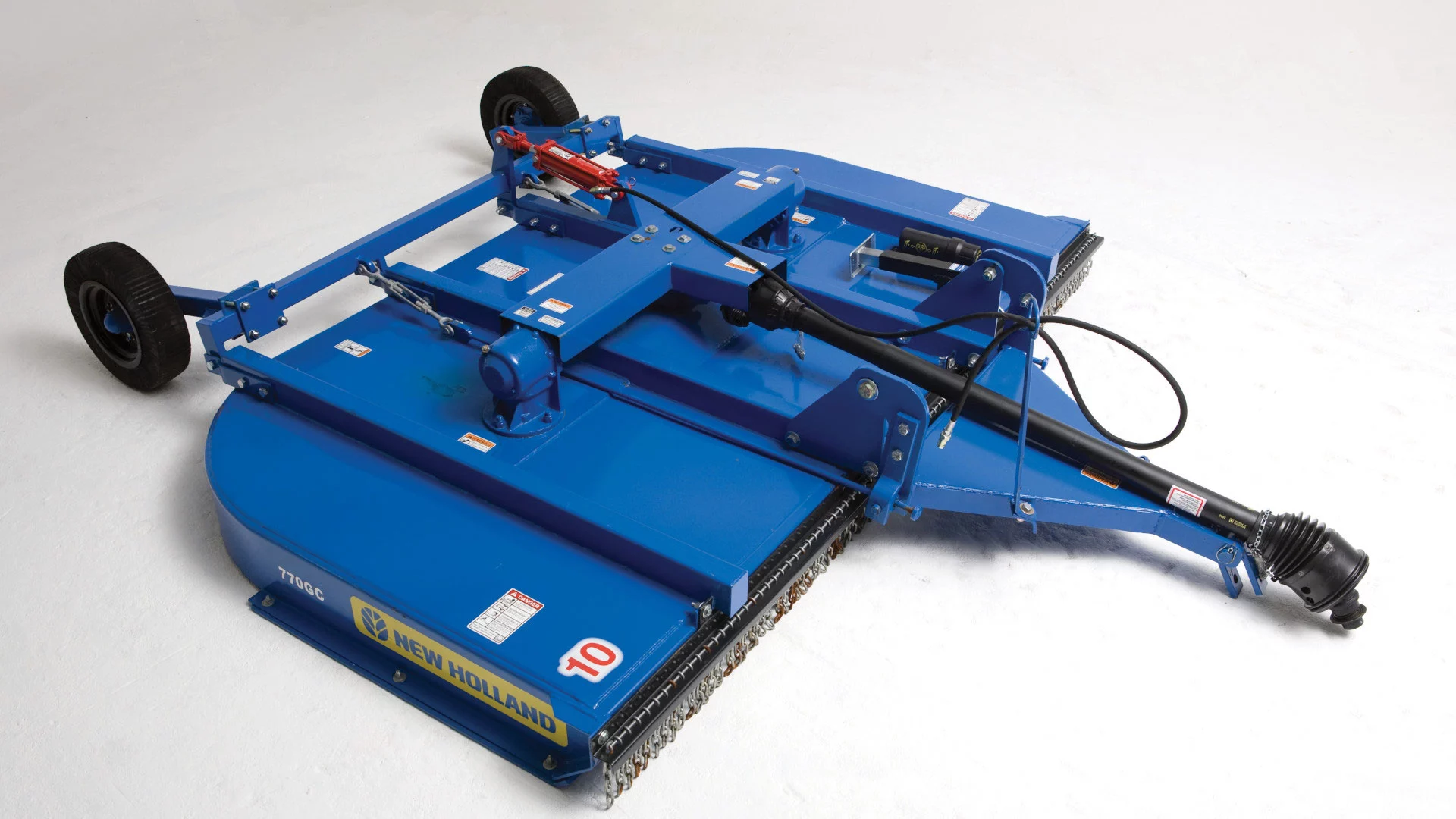

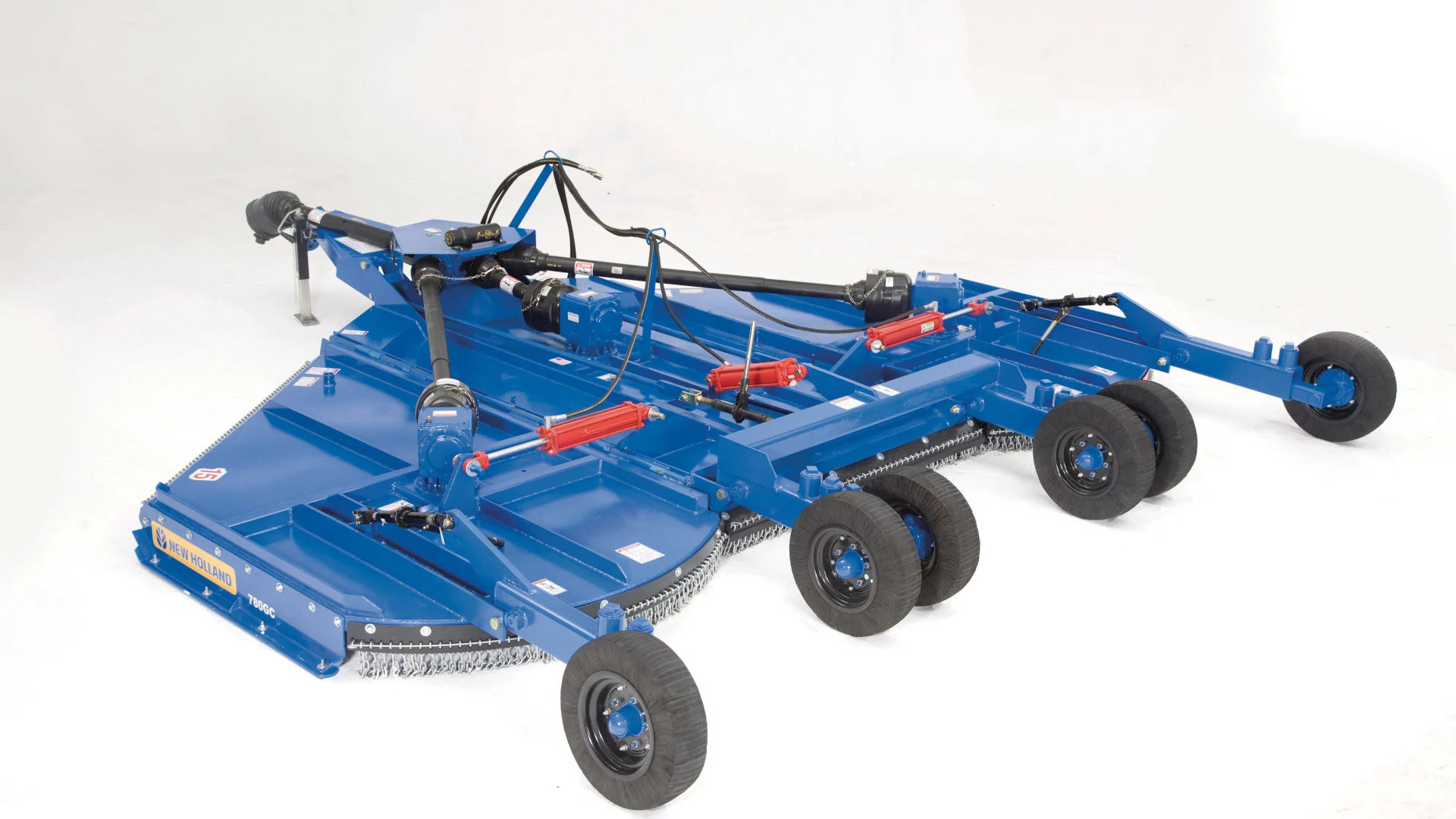

Cut thick grass and weeds or shred stalks and brush with ease. Add a 780 Series pull-type rotary cutter to your 60-210 horsepower tractor equipped with a 540-rpm PTO, and you’ve got an all-purpose workhorse to take on your toughest jobs. The flex-wing design provides easy transport between fields and down narrow roads
|
780GC
|
780GC
|
|||
|---|---|---|---|---|
Specifications |
||||
|
Type
|
||||
|
210 (157)
|
||||
|
Cutting Width (in. (mm))
|
180 (4572)
|
|||
|
Overall Width (in. (mm))
|
187 (4750)
|
|||
|
Overall Length (in. (mm))
|
180 (4572)
|
|||
|
Hitch
|
Pull-Type
|
|||
|
Driveline Category 540/1000
|
PT/CV Joint
|
|||
|
Gearbox Rating (hp (kW))
|
255 / 210 (190 / 157)
|
|||
|
Gearbox Warranty
|
5 Years
|
|||
|
Slip Protection
|
Slip Clutch
|
|||
|
Deck Gauge
|
7 Gauge
|
|||
|
Side Panel Depth (in. (mm))
|
10.5 x 1/4 (267 x 6.4)
|
|||
|
Blade Carrier
|
Pan
|
|||
|
Output Shaft Diameter (in. (mm))
|
2 or 2 3/8 (51 or 60)
|
|||
|
Blade Size (in. (mm))
|
1/2 x 4 (12.7 x 102) Updraft
|
|||
|
Blade Tip Speed Center/Out (fpm)
|
15,238 / 14,821
|
|||
|
Tail Wheel
|
3 Spindle
|
|||
|
Tire & Wheel
|
Laminated
|
|||
|
Safety Deflectors
|
Front/Rear Chains
|
|||
|
Weight (lbs. (kg))
|
5,894 (2673)
|
|||
