Reversible Plough For 30-45HP compact Tractors like John Deere and New Holland | CNH DRP-35
This time saving, reliable plough has been designed for the most common compact tractor brands: New Holland T3000, John Deere, McCormick, Lamborghini, Same Solaris, Kubota, McCormick, Ford, etc. Designed for cultivating clay or sandy soils. Manual (lever operated) overturning. Universal 3 point linkage Cat. 1. EC Declaration of Conformity.
BENEFITS & FEATURES
Doubles the ploughing capacity to save time and fuel.
Additional welded frame strengthening parts on the arm to reinforce stress points.
The plough’s tilt and depth can be adjusted easily.
Detachable and replaceable blades.
Gauge wheel that allows you to adjust depth and maximize usage.
Specification:
| Characteristic | Units metric |
|---|---|
| Overall width | 800.0 mm |
| Weight | 140.0 kg |
| Overall height | 1100.0 mm |
| Tractor Power Range | 30 – 45 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 530.0 – 620.0 mm |
| Overall length | 1050.0 mm |
| Number of Furrow | 1 |
| Furrow diagonal | 1030.0 mm |
| Width of cut | 360.0 mm |

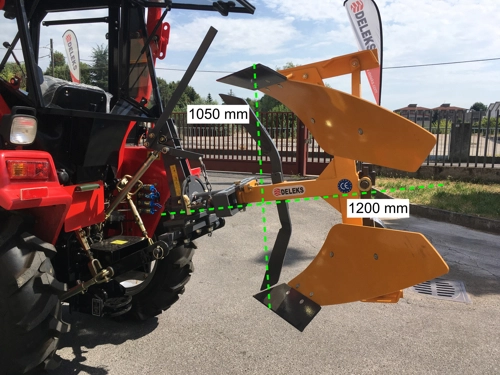

| Other sizes | See pictures |
| Effective Displacement | 240.0 mm |

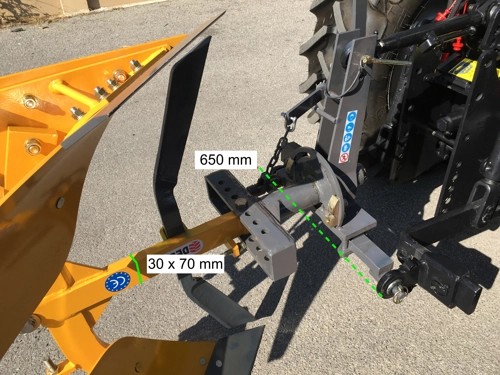

| Thickness of the arm | 35.0*70.0 mm |
| Cutting Edge Lenght | 450.0 mm |
| Cutting Edge Thickness | 15.0 mm |
| 3 point Linkage tube sizes | 60.0*10.0 mm |
| Depth adjustment Wheel sizes | ø 25.0 * 10.0 mm |
| Tipping Mechanism | Mechanical |
| Working Depth | 180.0 – 280.0 mm |
| Packing sizes | 1200.0*800.0*700.0 mm |
