OVERVIEW
Rotary Cutter, Lawnmower for tractors Kubota, Ford, McCormick, Iseki, Yanmar – DELEKS® BUGGY-120 – Cardan shaft CE.UGGY-120 Rotary Cutters are a quick and easy solution for clearing grass, weeds and light brush. BUGGY fits all standard compact tractors 14-40 hp e.g Kubota, Iseki, Yanmar, John Deere 2, etc. Perfect to give a clean finish on lawns, gardens, sports facilities and parks.
BENEFITS AND FEATURES

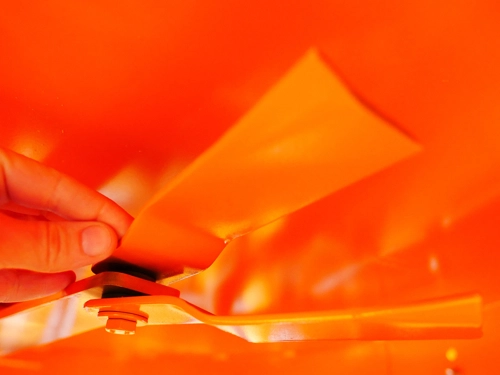

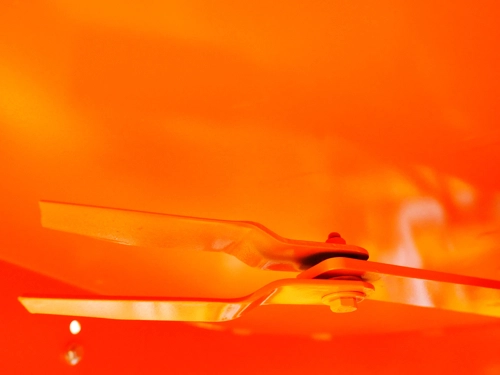

Double blade system that simultaneously cuts the stem of grass into 3 sections, pulverizing it.
Cardan shaft CE.
Small footprint that allows cutting even near the edges.
Suitable also for reversible usage: by reversing the 3-point attachment and the multiplier, it is possible to mount it frontally.
Adjustable slides to adjust the cutting height.
Extremely robust frame.
CHARACTERISTICS
| Characteristic | Units metric | Units US |
|---|---|---|
| Working width | 1170.0 mm | 3.84 ft |
| Overall width | 1260.0 mm | 4.13 ft |
| Min / Max cutting height | 10.0 – 60.0 mm | 0.40 – 2.35 in |
| Weight | 120.0 kg | 265.0 lb |
| Overall height | 650.0 mm | 2.13 ft |
| Tractor Power Range | 14-40 Hp | 14-40 Hp |
| 3 point linkage | Cat.1 (ø 19.0-22.0mm) | Cat.1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 450.0-720.0 mm | 17.70 – 28.35 in |
| Overall length | 1300.0 mm | 4.26 ft |
| Distance between pto attachment and ground | 340.0 mm | 13.40 in |
| Main hood thickness | 3.0 mm | 0.12 in |
| Transmission: Drive method | Gear | Gear |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3 years warranty) | Lombarda Ingranaggi Srl (Italy) (3 years warranty) |
| Transmission: PTO | 540 r/min | 540 r/min |
| Transmission: Rotation of gearbox | Right side | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 – ISO 72925 | Yes / SAE 120 – ISO 72925 |
| Number of Blades | 2 + 2 | 2 + 2 |
| Transmission: RPM Blade speed | 1080 r/min | 1080 r/min |
| Blades: Length/Width | 215.0/50.0 mm | 8.46/1.97 in |
| Blades: Diameter of the hole | 20.0 mm | 0.80 in |
| Pto shaft | CE 4×1000 mm with freewheel | CE 4×1000 mm with freewheel |
| Blades: Weight | 300.0 g | 10.60 oz |
| Packing sizes | 1270.0*1300.0*600.0 mm | 4.17*4.27*1.97 ft |
