- Patented low oil shutoff provides unique technology that protects the engine. When starting the unit, an electronic capacity sensor detects no oil or low oil and the engine will shut off within about 10 seconds
- Purge bulb evacuates air from the fuel line for easy starting

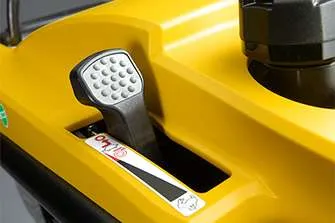

- The fuel valve and kill switch are integrated into the throttle lever to reduce complexity of operation
- Exclusive carburetor compensates fuel/air mixture for optimum performance and extended air filter life

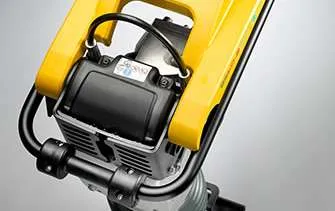

- A unique three-stage air filtration system provides a virtually dust-free engine for longer life and improved durability
- Dedicated 4-cycle crankcase for increased durability and simplified maintenance
- Unique crankcase breather system and three piece piston oil ring provide for lower oil consumption
- Ignition and fuel shut off built into the throttle control provides simplified operation
- Cast aluminum recoil start with oversized durable rope extends life in harsh environments
- The guide handle’s engineered shock mount system reduces HAV (hand-arm vibration) and improves operator comfort
- Made in Germany
Specifications
| BS60-4AS | |
|---|---|
Operating data |
|
| Operating weight lb | 159 |

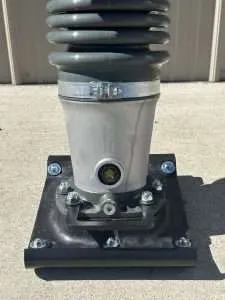

| Ramming shoe size (WxL) in | 11 x 13.4 |
| L x W x H in | 26.5 x 13.5 x 38 |
| Percussion rate max.blows/min | 690 |
| Stroke at the ramming shoe in | 3.1 |
| Impact force lbf | 4,047 |
| Operating speed ft/min | 28.9 |
| Surface capacity – Compaction ft²/h | 1,604 |
Engine / Motor |
|

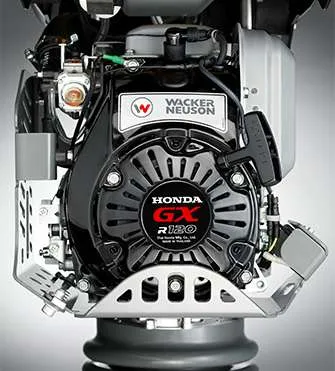

| Engine / Motor type | GXR 120 |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | Air-cooled single-cylinder four-cycle gasoline engine |
| Displacement in³ | 7.38 |
| Operating performance (DIN ISO 3046-1) hp | 3.6 |
| at rpm rpm | 4,200 |
| Fuel consumption US gal/h | 0.26 |
| Fuel tank capacity US gal | 0.77 |
| CO2 (NRSC) * g/kW-hr | 674 |
