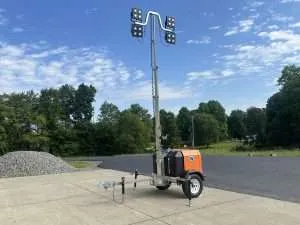

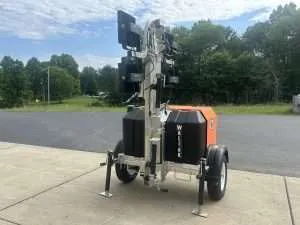

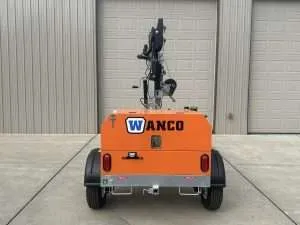

The Wanco WLTT-4LK106K Compact Vertical Mast LED Light Tower is truly unique, designed with the features our customers ask for most often. It has the tallest tower in its class, over 24 feet, and the lights can be aimed from the ground when the tower is fully lowered. The compact design allows up to 18 units on a single 53-foot truck, reducing per-unit shipping cost and improving overall cost.
Its small size doesn’t sacrifice performance, though. When paired with the largest fuel tank in its class, its robust industrial‑grade power plant provides the longest run time of any compact light tower available — about 240 hours before refueling.
Wanco Compact Light Towers are equipped with state-of-the-art technology to achieve superior illumination whether you choose LED or metal halide lights. Our LEDs are the most powerful you’ll find on any LED light tower in any class, and our HIDs use a highly reflective fixture design that puts maximum light on the job for longer, increasing productivity and safety, saving you time and money. Balloon lights are also available.
Efficiency and safety continue with durable components that will last, and thoughtful design features that may surprise you. Rental houses will love the heavy-duty leveling jacks and the only all-steel cabinet available in a compact model. Users can aim the lights while standing on the ground, before raising the tower — no ladder needed, no need to climb on the trailer — and the always vertical tower is easy to raise and lower with a dual‑handle manual winch or a power winch.
Compact and efficient, cost-effective to own and operate, the unique Wanco Compact Light Tower is impressively unlike any other.
Features
- Up to 18 units on a single truck
- Aim lights from the ground
- Heavy gauge all-steel body
- Tallest of all compact light towers
- Largest fuel tank and longest run time in its class
Transport and Storage
- Compact design takes up less space when shipped or stored
- Fold-up tow bar reduces footprint when stored
- Up to 18 units fit on a single 53-foot flatbed trailer
- Balanced design and short height ensure the best towing experience of any light tower
- Two units can be tandem towed (when allowed — towing regulations vary by region)
Setup
- Compact design is easy to maneuver and deploy
- Balanced design makes it easy to move the trailer by hand with just one person
- Three outriggers and four leveling jacks provide stability when deployed
- Lights can be safely adjusted from the ground, with no need to climb on equipment
- Lights are aimed independently and hold their position without tools
- Single winch raises and lowers the tower smoothly and easily
- Dual-pulley system lifts each tower section from below, reducing the cable load by 50% and balancing the load for smooth transition up and down
- Tower rotates nearly 360 degrees, reducing the need to frequently move the trailer
- Tower is the tallest available on a compact light tower
- Lights operate at any height

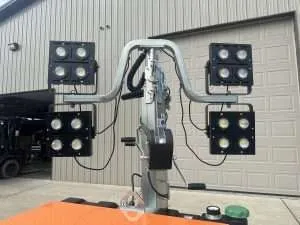

- LED lights are the brightest available on a compact light tower
Operation
- All-steel, weather-resistant equipment cabinet protects controls, engine and other components from the elements
- Hinged door panel with latch provides access to controls, engine and electronics
- Lockable door latch protects components from unauthorized access

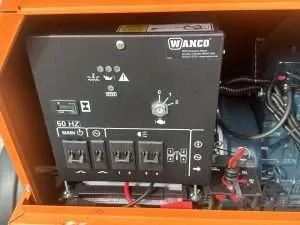

- Control panel includes circuit breakers for lights and convenience outlet
- Control panel features engine hour meter and LED status indicators

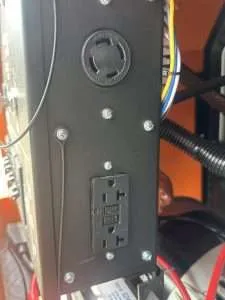

- Convenience outlet with dedicated circuit breaker powers auxiliary equipment
- Main power circuit breaker provides added protection and instant-off to prevent engine damage
- Optional auto-start/stop system provides dusk-to-dawn or programmable schedule operation
Power System
- Rugged industrial diesel engine paired with a premium four-pole generator
- Large fuel tank extends run time between refueling
- Fuel tank is the largest available on a compact light tower
- Glow-plug preheat system improves cold-weather starting
- Optional cold-weather package ensures starting in severe cold
- Automatic engine-shutdown system protects engine from damage due to low oil pressure and high coolant temperature
Maintenance
- Removable top panel and door, and fold-down rear panel, provide unimpeded access to engine, generator and electrical components
- All-welded structural steel frame ensures durability and long life
- Durable powder-coat finish resists the elements
- Sealed maintenance-free start battery
- Standard trailer tires
- Bolt-on fenders can be replaced if damaged
